Controls and Indicators 49
I/O Status
In this section, you will find helpful information to troubleshoot body-related problems that you may
face during your day-to-day tasks. These problems can be of any nature, from hydraulic to
mechanical, electrical or pneumatic.
Select the control module corresponding to the part of the truck that needs to be checked.
For example, if you want to check all functions that are found in the cab, choose module #10. For all
functions that pertain to the right hopper, choose module #50 or #60, etc.
To choose a particular module, use the up/down arrows to select it and press “OK”.
NOTE: Pressing “OK” can be done two ways: either press the far right button or the “OK” button.
Press “Esc” to return to the preceding page.

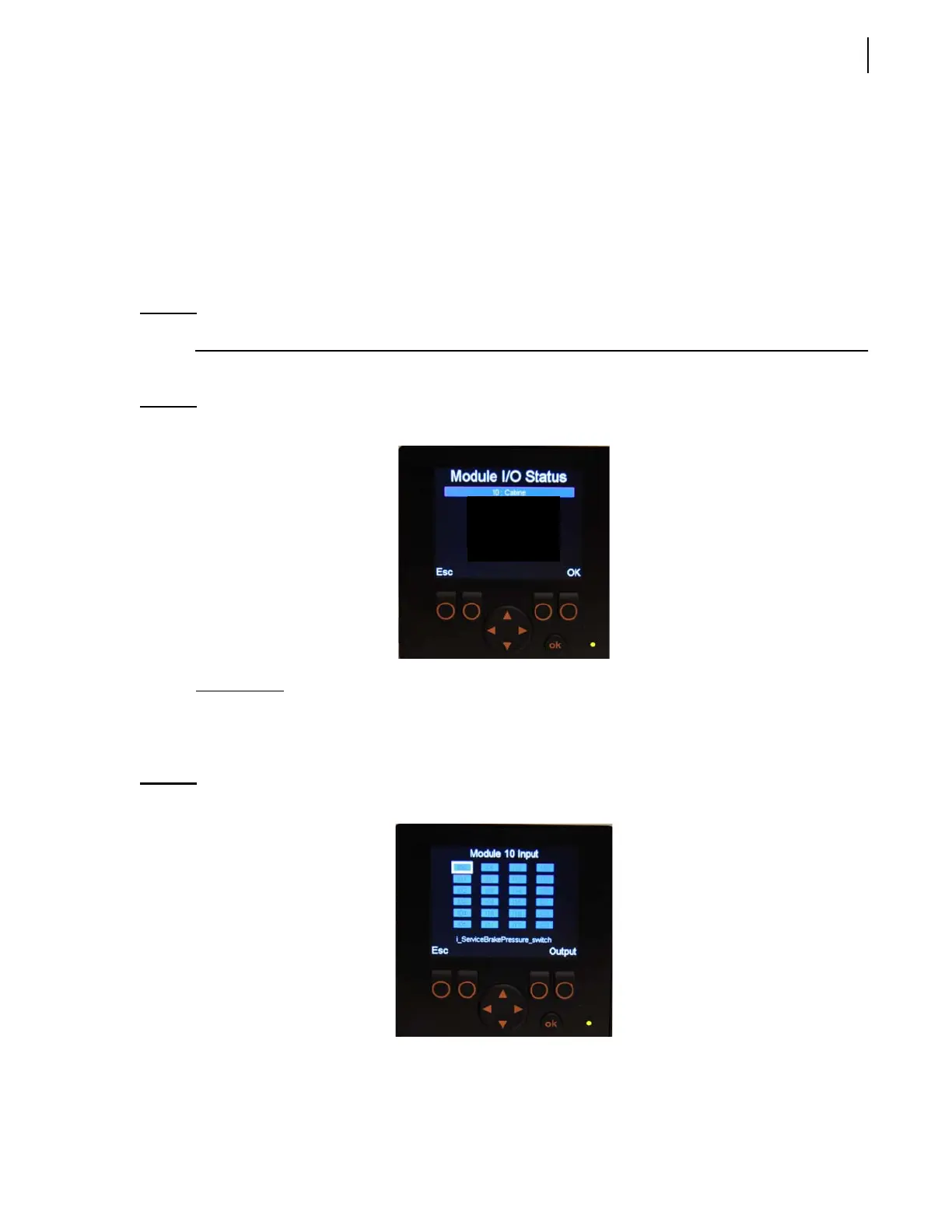

Figure 3-8
Module I/O Status page
Input Status
The Input Status page is accessible from the Module I/O Status page. After selecting the desired
module and pressing “OK”, the Input Status page of the selected module is displayed (see Figure
3-9).
Figure 3-9
Input Status page
11: Display
50: Right Hopper 1
60: Right Hopper 2
127-72: Joysticks
J1939
