50 Controls and Indicators
The Input Status page contains a set of rectangles. Each of these rectangles represents input elements,
which in turn correspond to a particular function of the truck. For example, if you select rectangle I00,
a short description appears in the lower part of the screen, which indicates that this rectangle relates
to the input element coming from the service brake pressure switch.
NOTE: Each rectangle is numbered and relates to a specific function of the truck. However, for a given
number, the related function may vary from truck to truck.
Press “Esc” to return to the preceding page.
Press the “Output” button to display the Output Status page.
Output Status

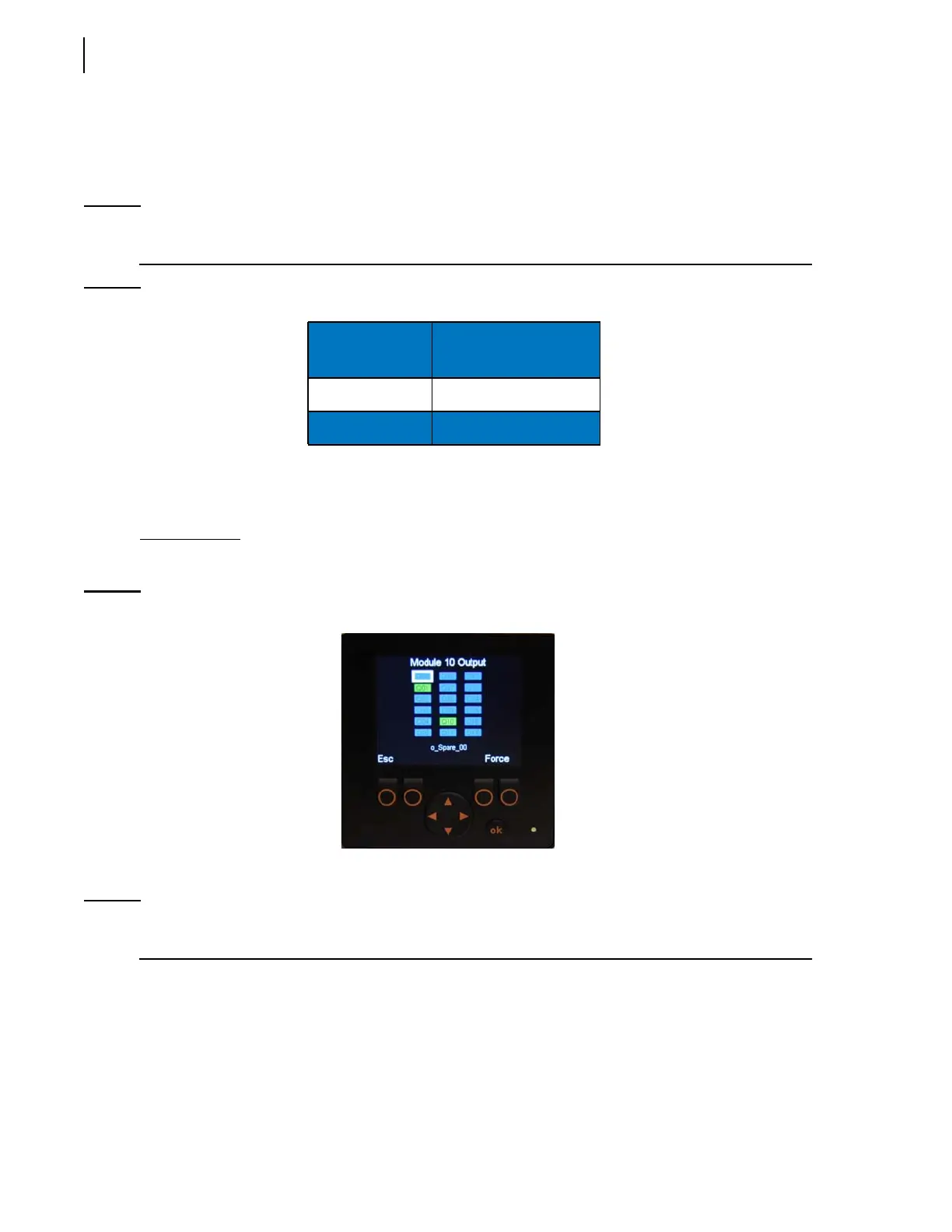

The Output Status page (see Figure 3-10) is accessible from the Input Status page.
Figure 3-10
Output Status page
The rectangles on this page are used to check the status of different outputs.
NOTE: Each rectangle is numbered and relates to a specific function of the truck. However, for a given
number, the related function may vary from truck to truck.
Table 3 Colored rectangles
Rectangles
(inputs)
Function Status
Blue Inactive
Green Active
