g the 2D Missing Line Routine:
• Press
to re-shoot Shot 1.
• Press
to exit the Missing Line Routine.
1. Select your first target and look through the eyepiece, using
the crosshair to aim to your target. The ML indicator
displays steady and the HD indicator flashes; prompting you
to measure the Horizontal Distance to the first target.
2. Press-and-hold
. The LASER status indicator is
displayed while the laser is active. The laser remains active
for a maximum of 10 seconds while acquiring data about the
target. The measured horizontal distance appears in the
Main Display.
3. Once the
button is released, "SHot2" appears steady
and the HD indicator flashes (with ML steady); prompting
you to measure the Horizontal Distance to the second target.
Looking through the eyepiece and using the crosshair to aim
to the second target.
4. Press-and-hold
. The LASER status indicator is
displayed while the laser is active. The laser remains active
for a maximum of 10 seconds while acquiring data about the
target. The measured horizontal distance to the second target
appears in the Main Display.
5. Once you release
, HD and ML are steady and the calculated
horizontal distance of the missing line is displayed. The
measurement
flashes one time and then displays steady until you press any button or
the unit powers off.
Note: Only International lasers include meters.
At t
his time, you can:
 Press
or to scroll and see the other missing line measurements results (VD, SD, and INC).
 Reshoot Shot 2 by pressing
or until Shot 2 and ML appear steady in the display as well as
HD flashing, prompting you to measure the horizontal distance to the second target (or new target).
Go to #4 above.
 Press
to exit the missing line results and return to Shot 1.

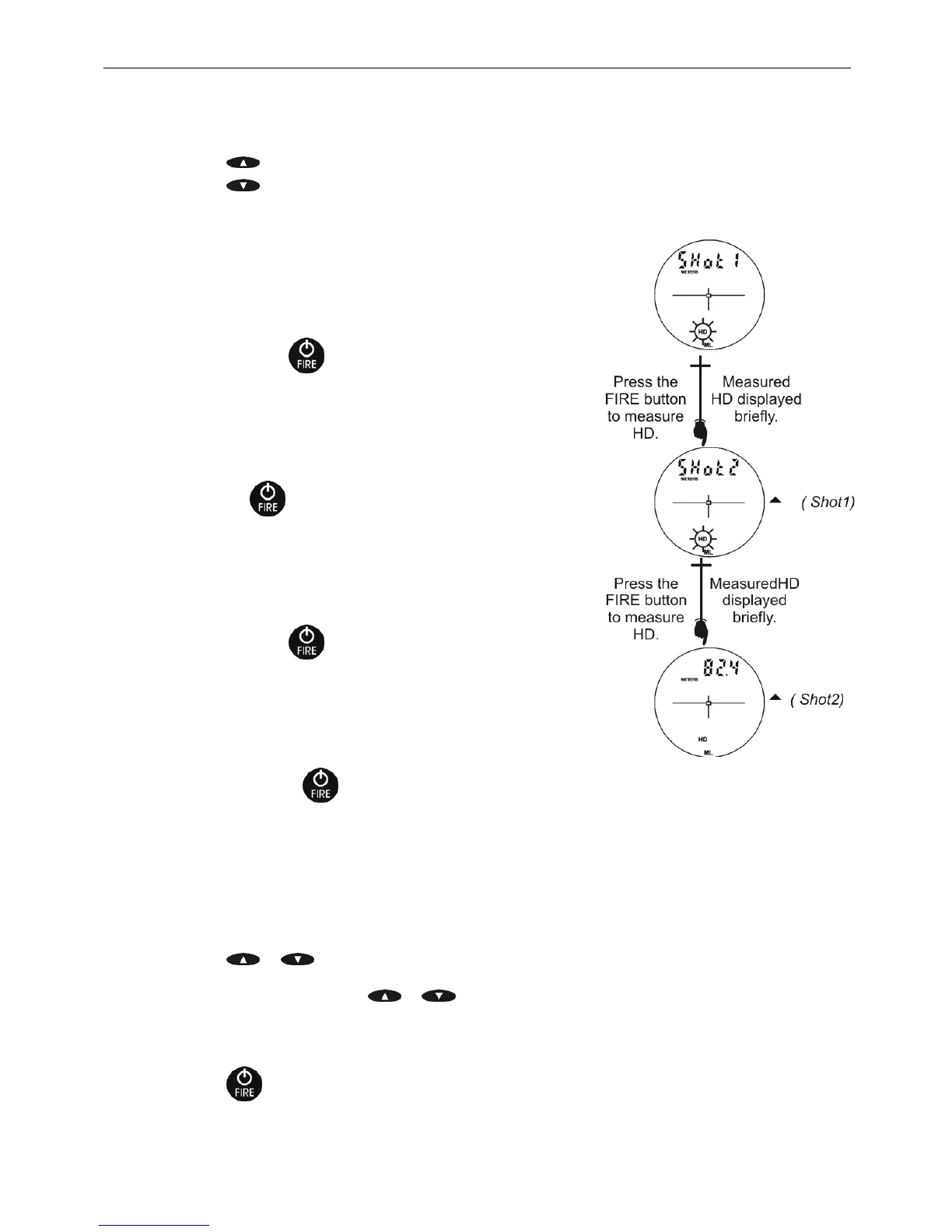

Figure #20
