LTI TruPulse 360R User’s Manual Page 15
Copyright (c) [2017] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Diopter Adjustment Ring
The diopter adjustment ring (see Figure #7 above) allows you to focus the LCD in-scope display
relative to the target for your eye. During assembly, optimum focus is set to infinity. To adjust
the LCD focus, turn the diopter adjustment ring to suit your personal preference.

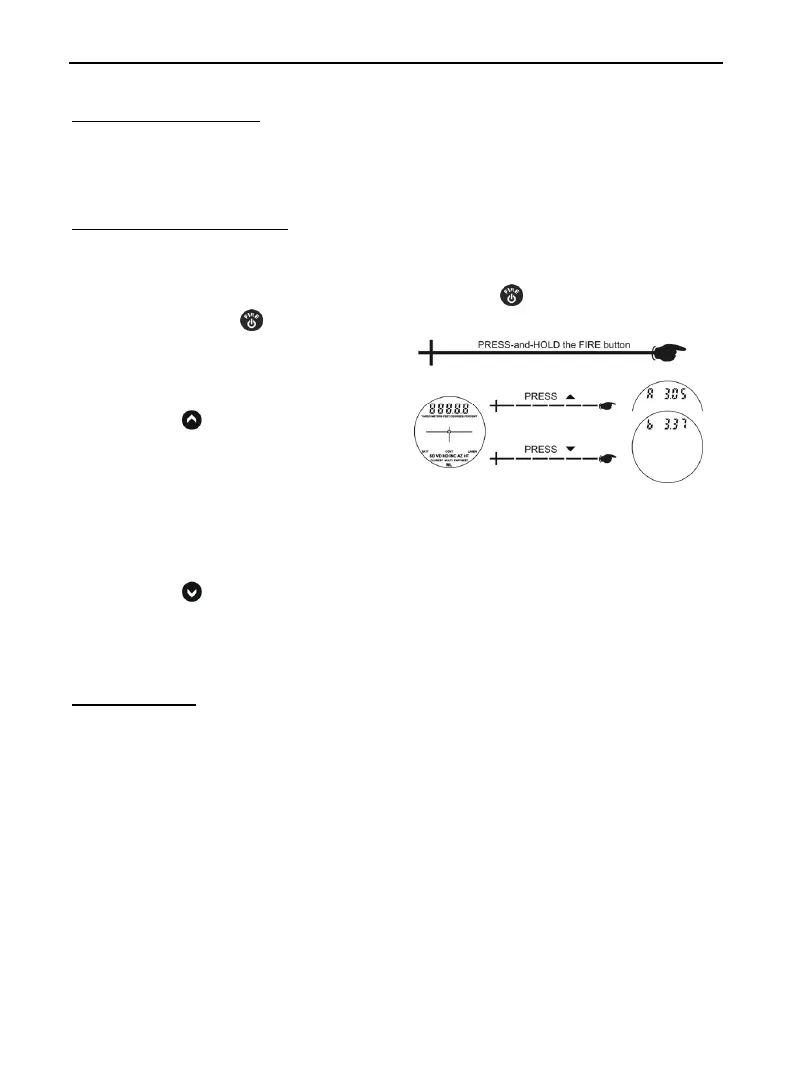

Firmware Revision Numbers
The firmware revision numbers provide manufacturing information about your TruPulse 360R.
To display the main and auxiliary firmware revision numbers:
1. Start with the TruPulse 360R powered OFF, press-and-hold
.
o Do not release
until done.
If you release the button too early,
power OFF the TruPulse and repeat
step #1.
2. Looking through the eyepiece:
o Press
to display the
main firmware revision
number. The display should
look similar to the example
below. The leftmost character
should always be ‘A’ and the
remaining three digits represent
the main firmware revision
number (3.05 in Figure #8).
o Press
to display the auxiliary firmware revision number. The display
should look similar to the example above. The leftmost character should
always be ‘b’ and the remaining three digits represent the auxiliary firmware
revision number (3.37 in Figure #8).
Measuring Point
The measuring point of the TruPulse 360R is located at the center point of the instrument,
the ¼-20 thread.
Figure #8
