Azimuth Measurements
The laser is not active in the Azimuth (AZ) Measurement Mode. Generally, the azimuth is measured
when you press
. However, in the Continuous Target Mode, the azimuth reading appears in the
Main Display and is updated as your aiming point changes as long as you press
.
As a reminder, "d" appears as the left-most character in the Main Display to
indicate that a declination value has been entered.
Height Routine
Height Measurements involve a simple routine that prompts you to take 3 shots to the target: HD,
INC base (or top), and INC top (or base). The TruPulse 360R uses these results to calculate the
height of the target. Figure #21 shows the three shots required for the Height Routine.

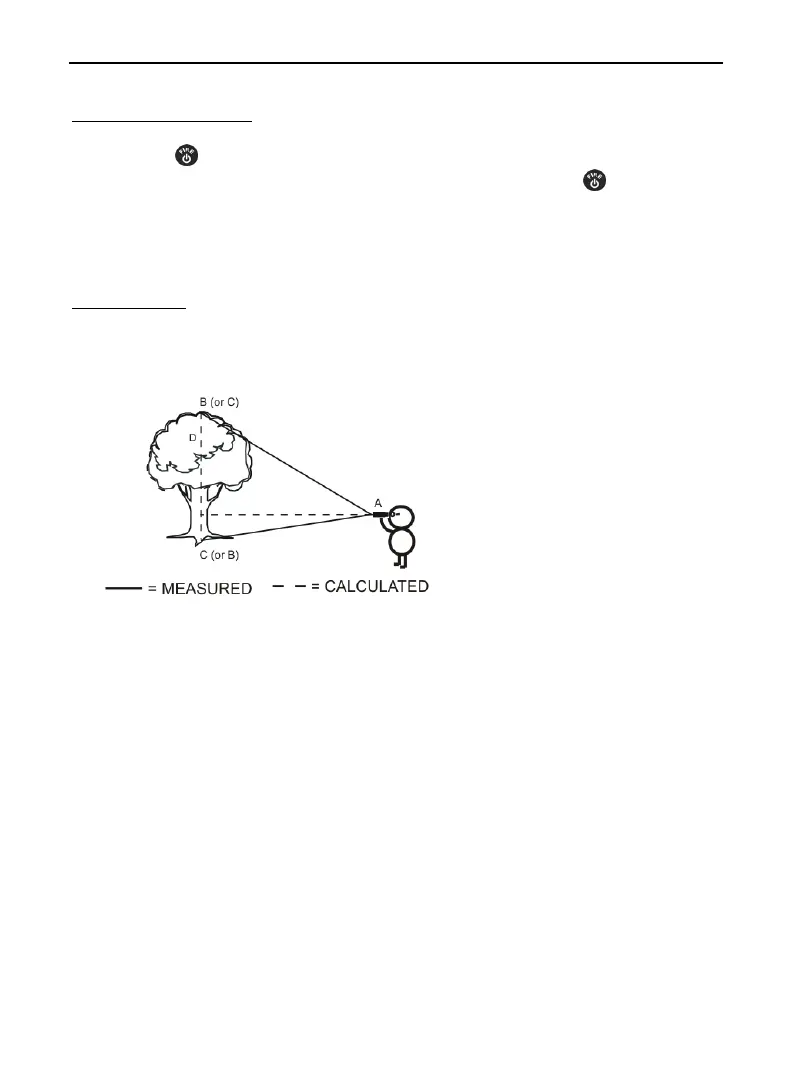

Figure #21
A = Horizontal Distance
B = Top Angle
C = Base Angle
D = Hei
h
