1. Select your target and look through the eyepiece,
using the crosshair to aim to your target. The HT
indicator displays steady and the HD indicator
flashes; prompting you to measure the Horizontal
Distance to the “face” of the target.
2. Press-and-hold
. The LASER status indicator is
displayed while the laser is active. The laser
remains active for a maximum of 10 seconds while
acquiring data about the target. The measured
horizontal distance appears briefly in the Main
Display and then Ang_1 and the INC indicator
flashes; prompting you to measure the inclination to
base (or top) of the target.
3. Press-and-hold
and aim to the base (or top) of
the target. The measured inclination appears in the
Main Display and is updated as long as us you
continue to hold
. The measured inclination is
“locked” when you release
. The measured
inclination appears briefly in the Main Display and
then Ang_2 appears and the INC indicator flashes;
prompting you to measure the inclination to the top
(or base) of the target.
4.Press-and-hold
and aim to the top (or base) of
the target. The measured inclination appears in the
Main Display and is updated as long as you
continue to hold
. The measured inclination is
“locked” when you release
. The measured
inclination appears briefly in the Main Display and
then the calculated Height is displayed. The
measurement flashes one time and then displays
steady until you press any button or the unit powers
OFF. Note: Only International lasers include meters.
Continued on Next Page.

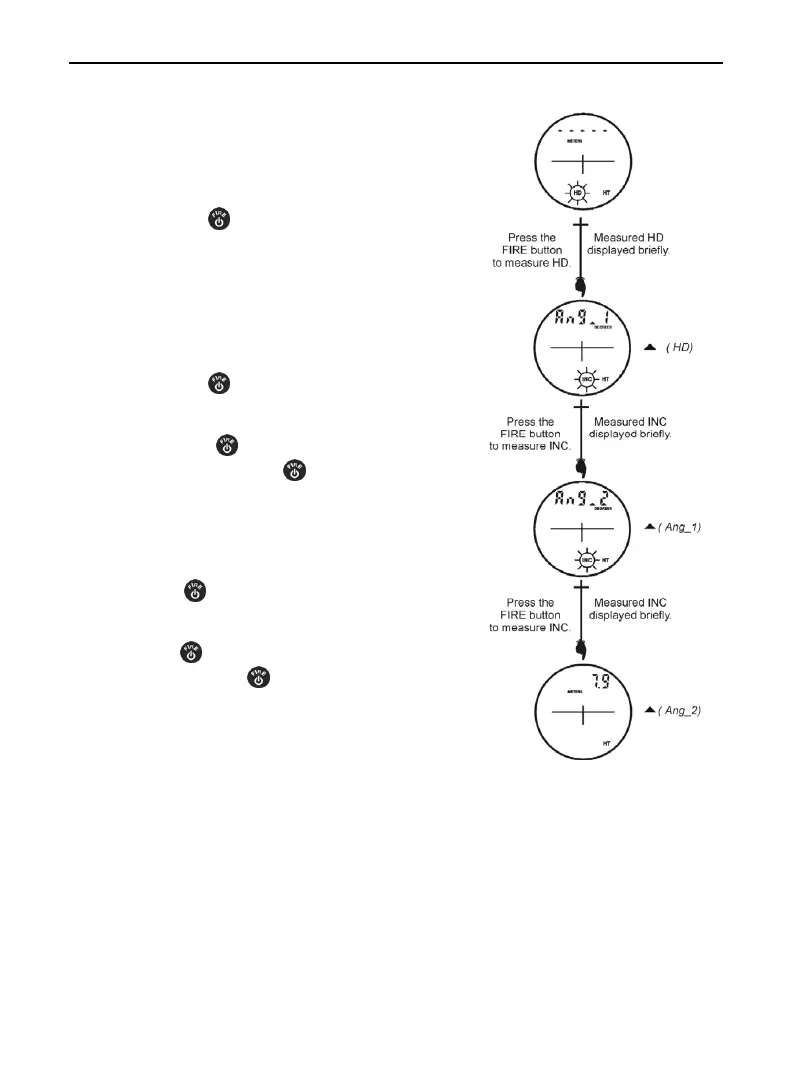

Figure #22
