LAUNCH X-431 Module S2 User Manual
17

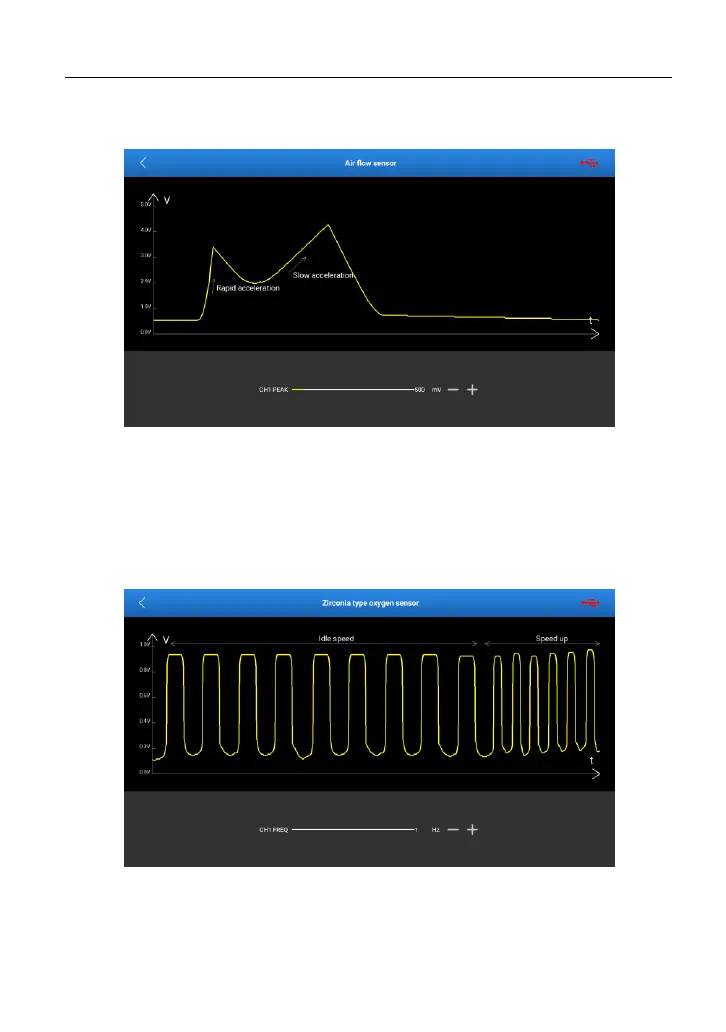

6) Air flow sensor
Output channel: CH1
Output type: DC voltage
Drag the yellow slider to change the output voltage value of CH1 to simulate the
air flow.
7) Zirconia type oxygen sensor
Output channel: CH1
Output type: square wave
Drag the yellow slider to change the output frequency of CH1 to simulate the
