LAUNCH X-431 Module S2 User Manual
21

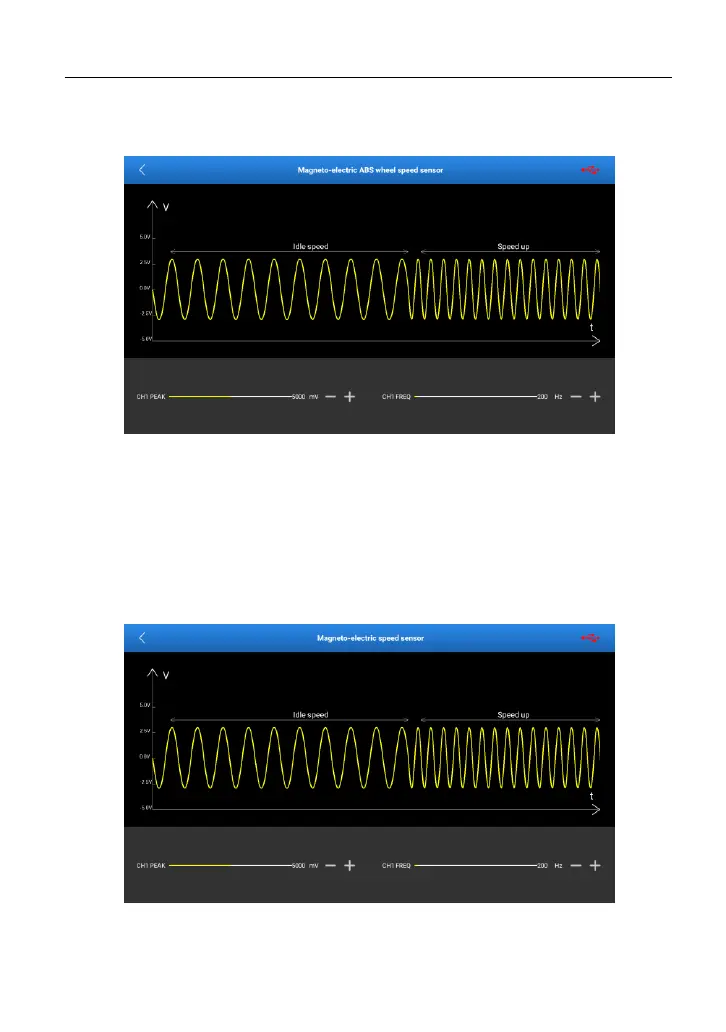

3) Magneto-electric ABS wheel speed sensor
Output channel: CH1
Output type: sine wave
Drag the CH1 amplitude slider to change the output waveform amplitude.
Drag the CH1 frequency slider to change the output waveform frequency to
simulate idle speed and acceleration status.
4) Magneto-electric speed sensor
Output channel: CH1
Output type: sine wave
