This option adjusts the Scopebox’s internal circuitry to get the best accuracy. Use this function to calibrate
the Scopebox’s vertical and horizontal systems.
Tap or click

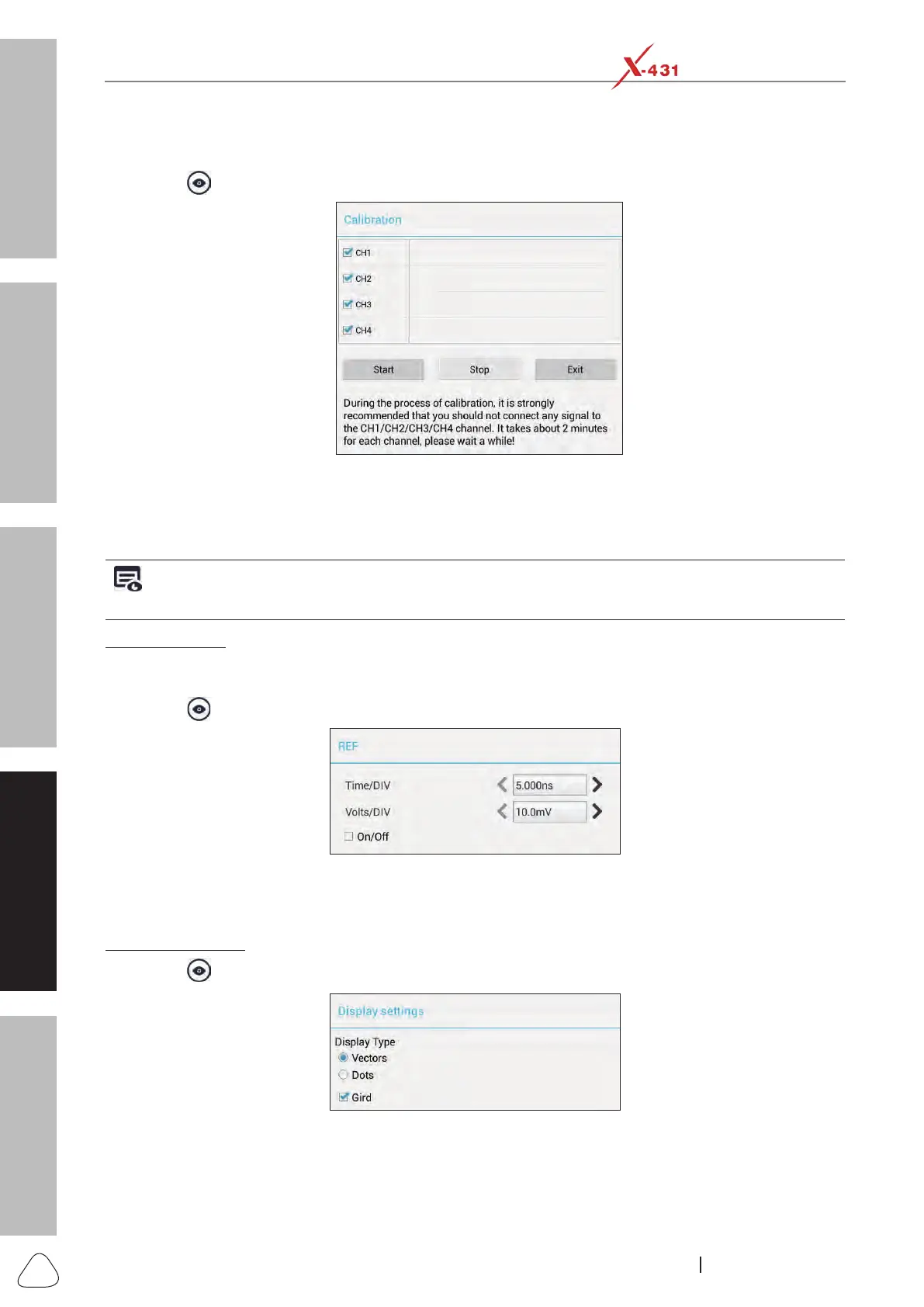

and then tap [Calibration], a dialog box similar to Fig. 7-30 will appear.
Fig. Oscilloscope-6
Check the box before the channel to select it. To deselect it, just uncheck it. After choosing the desired
channel(s), tap [Start] to start calibration and [Start] button will be temporarily invalid during calibrating. Tap
or click [Stop] to stop calibrating. Once it becomes active, it indicates calibration has completed.
Note: In process of calibration, make sure CH1/CH2/CH3/CH4 has no signal input. Moreover, calibration may
take several minutes and please be patient to wait.
<2> REF settings
Reference waveforms are saved waveforms to be selected for display. The reference function will be
available after saving the selected waveform to non-volatile memory.
Tap or click
and then [REF] to enter the REF setting screen.
Fig. Oscilloscope-7
Tap or click < or > to select the desired reference value for time/DIV and volts/DIV. To show or hide the REF,
just check/uncheck the box before On/Off.
<3> Display settings
Tap or click
and then [Display settings] to enter the setting screen.
Fig. Oscilloscope-8
Select “Vectors” or “Dots” to display waveforms as vectors or dots. Check / uncheck the box before Grid to
turn on/off grid display.
4). Measure
