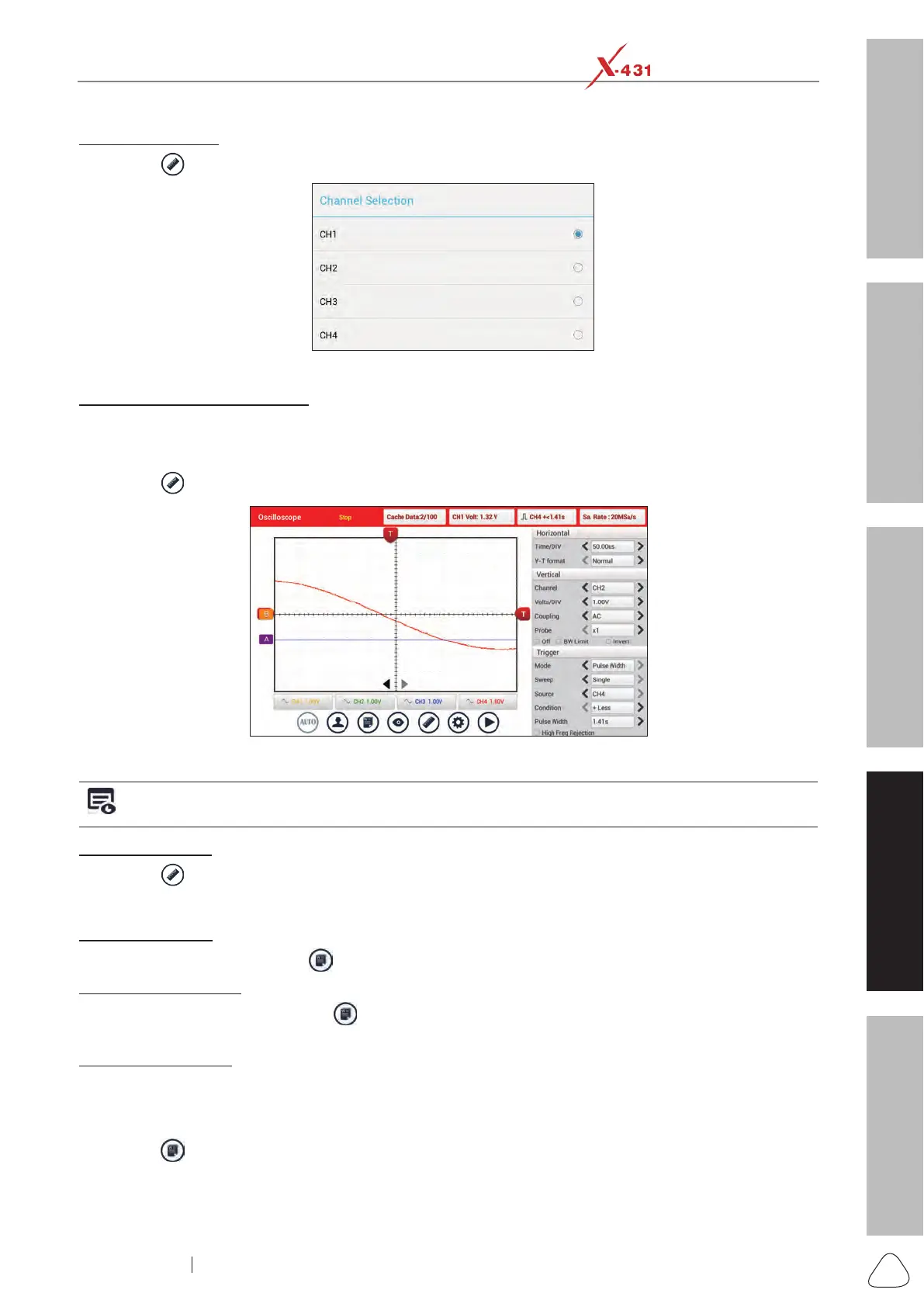

<1> Channel source
Tap or click
and then [Source], a screen similar to the following will appear.
Fig. Oscilloscope-9
<2> Horizontal / Vertical measure
Horizontal Measure / Vertical Measure are used to measure voltage parameter and time parameter
respectively. Drag A line upwards or downwards to control voltage. Move A line left or right to fine-tune
timebase. A line is a solid line and B line is a dotted line.
Tap or click
and then [Horizontal Measure], a screen similar to the following will appear.
Fig. Oscilloscope-10
Note: If no desired channel is selected, the system will take the current source as the default channel.
<3> Clear measure
Tap or click
and then [Clear Measure], the system will clear the measurement result on screen.
5). File management
<1> Save snapshot
While viewing sampling data, tap
and then [Save Snapshot] to store the current screen.
<2> Snapshot manager
While viewing sampling data, tap
and then [Snapshot Manager] to enter. View, delete and edit
operations are supported.
<3> Record waveform
This function is used to record input waveforms that are acquired by the Scopebox at a specic period, and
save it as waveform le which can be recalled in future.
It can be performed only when the Scopebox is collecting data in Normal mode.
Tap or click
, then select [Record] from the pop-up menu to start recording.
