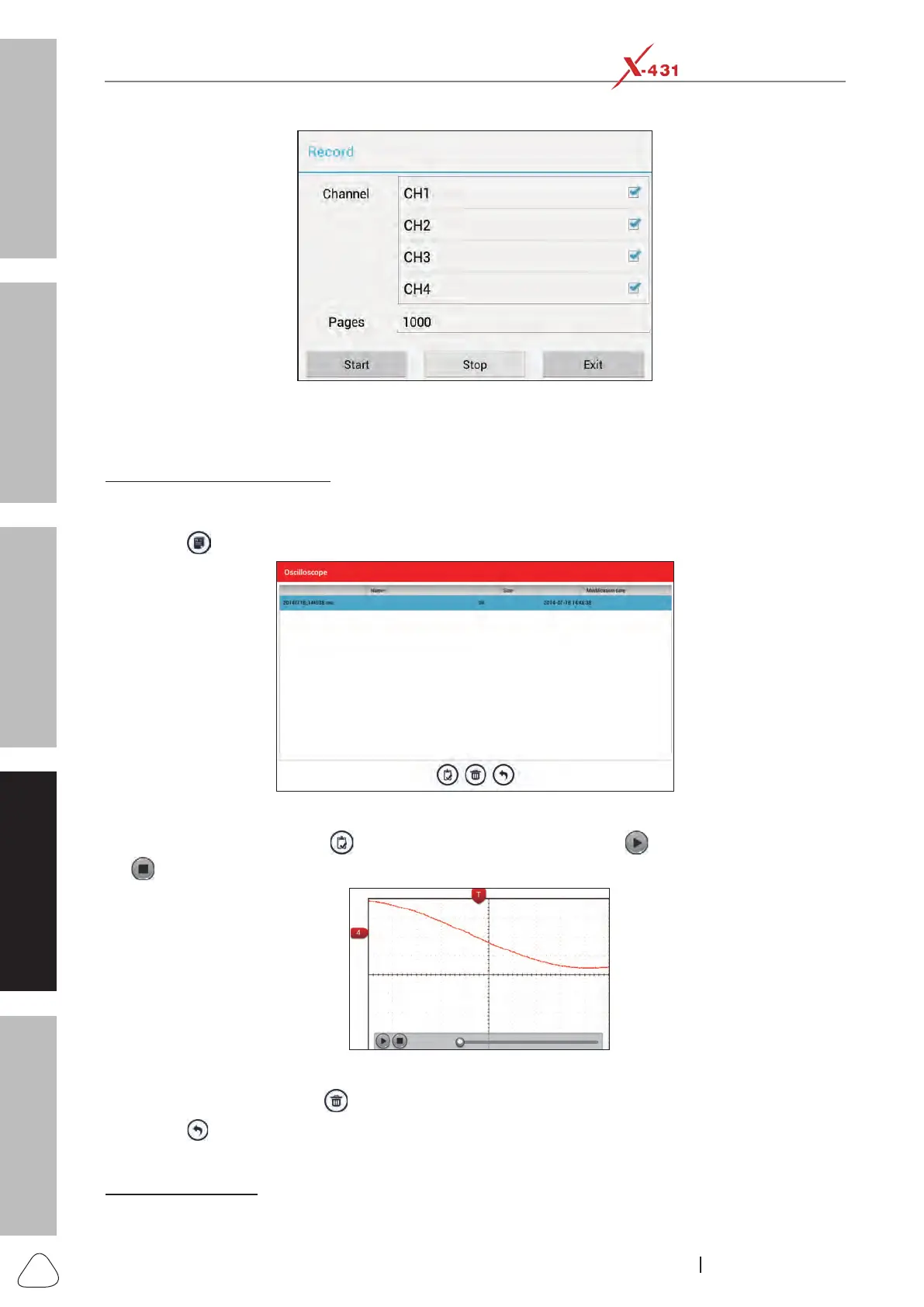

Fig. Oscilloscope-11
Tap or click [Start] to start recording with a minimum record length of 10 frames, and [Stop] to stop
recording. While recording, the recorded pages will be shown on the screen.
<4> Load waveform for playback
The Import function enables you to import the stored waveform file for playback and review. During
replaying, the Scopebox stops collecting data automatically.
Tap or click
, then select [Waveform replay] from the pop-up menu to enter:
Fig. Oscilloscope-12
Select the le rst, and then tap
to open the waveform le. Tap or click to starting the playback and
tap
to stop it.
Fig. Oscilloscope-13
To delete the waveform le, tap
.
Tap or click
to return to the previous screen.
6). Expert reference
<1> Expert Reference
By default, it appears blank. As a matter of fact, Expert reference database is generated by doing the
