Initial Use
49
www.x431.com +86 755 8455 7891
LAUNCH
Station
User's Guide

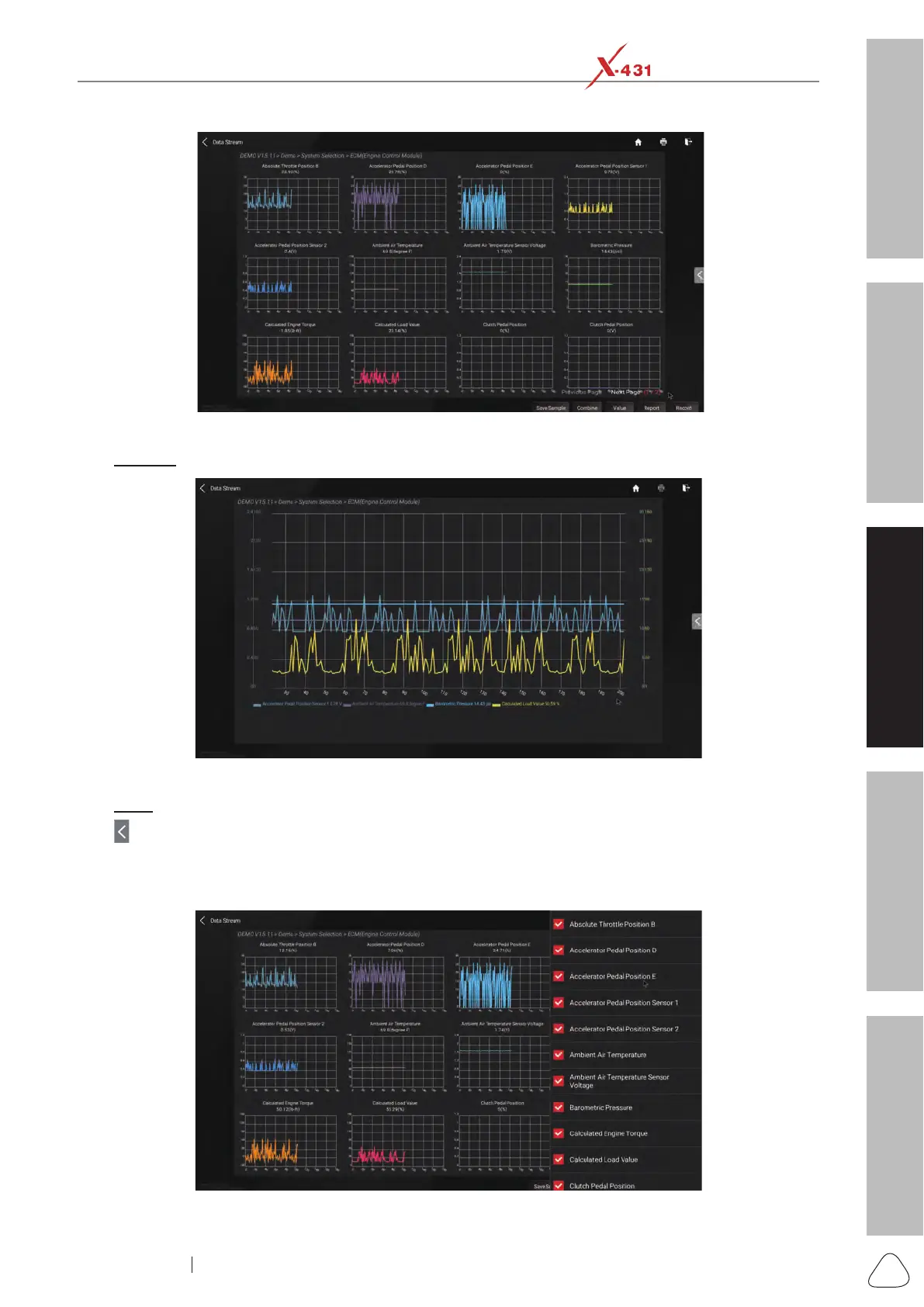

Fig. L-19
• Combine: This option is mostly used in graph merge status for data comparison.
Fig. L-20
• Value: Displays the parameters as texts in a list format.
•
: This option allows you to select only the PIDs that you wish to display. Tap or click it, a pull-
down list of the data stream items appears on the screen. Select (Up to 8 data stream items can be
selected)/deselect the desired items and then screen will display/remove the corresponding waveforms
immediately.
Fig. L-21
