Manual Leapfrog Creatr
67 Leapfrog BV
o Step 1: Gain access to the bearing plate
In order to gain access to the bearing plate you will have to remove the 2 middle bolts at
the front of the extruder carriage first as shown in the next figure.
Once these bolts are loosened you have to disconnect the connectors of the fan cables in
the cable chain so you can slide the front of the carriage sideways. Now you gain access
to the plate in front of the driver gear. This plate can easily be removed by loosening the
bolts in the bottom corners of the plate.

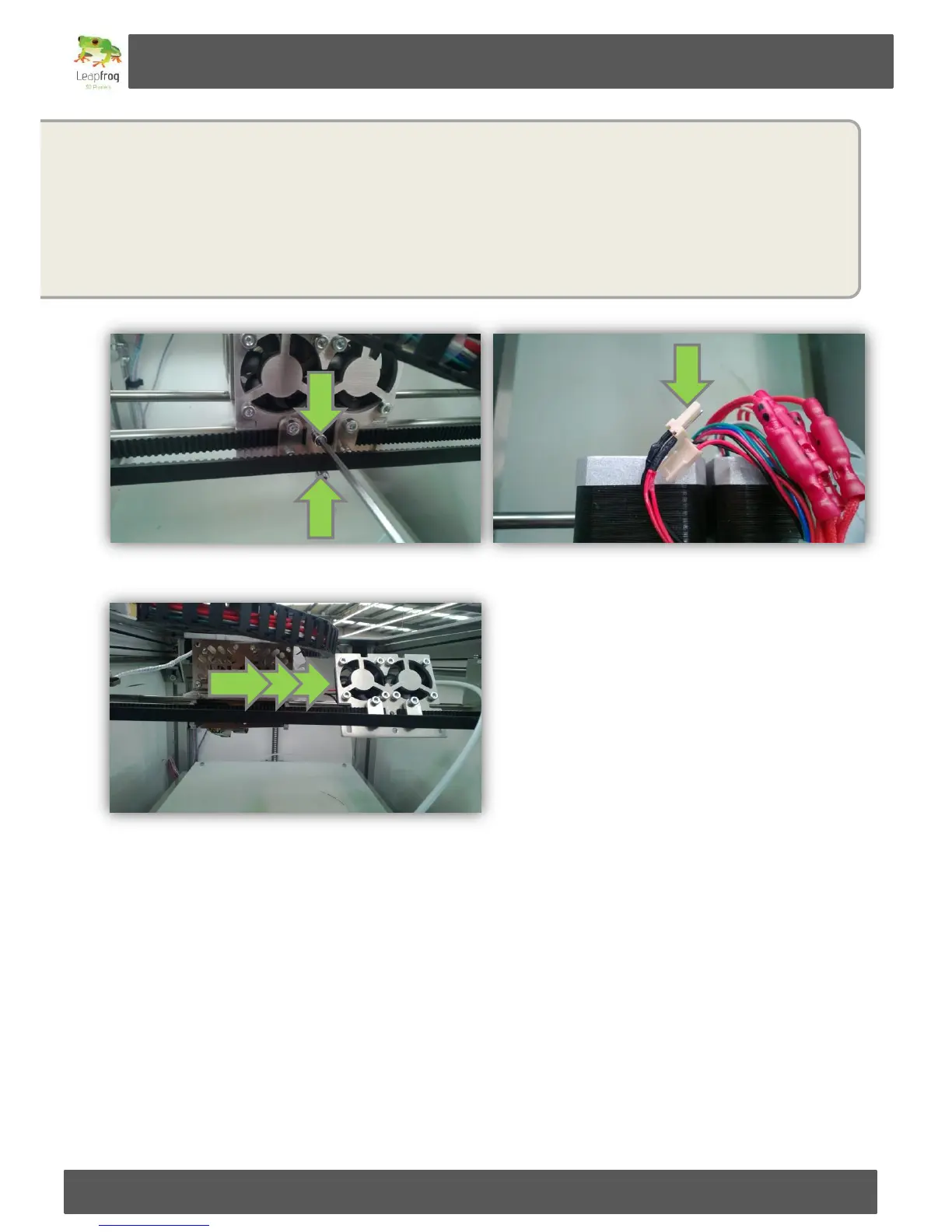

Loosen the middle bolts Disconnect the fan cables
Slide away the front of the carriage
