X-Stream Operator’s Manual
WM-OM-E Rev I 107
The timing for the width is initialized and restarted on the opposite slope to that selected. You can
set widths from 600 ps to 20 s.
NOTE: If the glitch's width is narrower than the signal's width, set the trigger to a narrower width than that of the signal. The
signal's width, as determined by the instrument trigger comparator, depends on the DC trigger level. If that level were to be
set at the middle of a sine wave, for example, the width could then be considered as the half period. But if the level were
higher, the signal's width would be considered to be less than the half period.

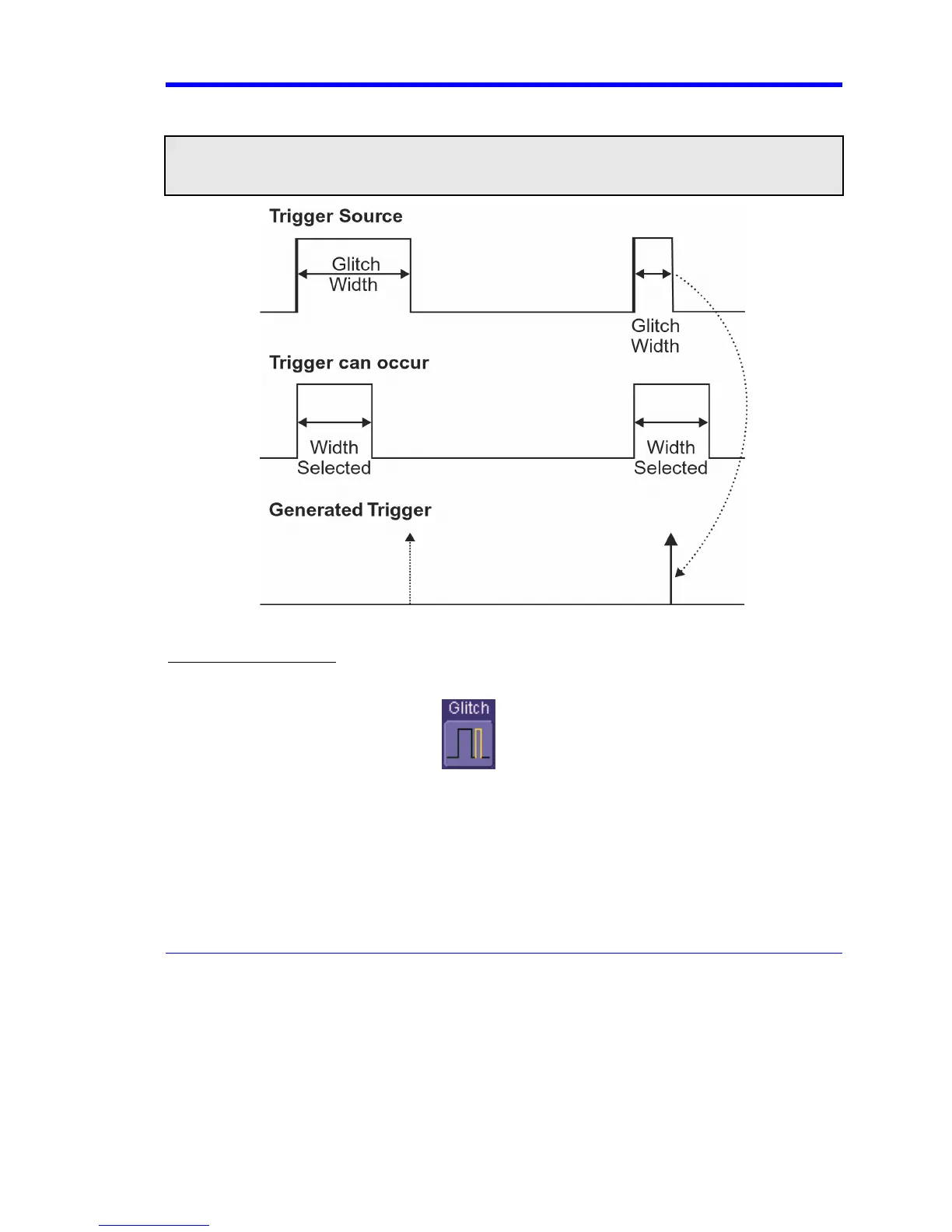

Glitch Trigger: In this example triggering on a pulse width less than or equal to the width selected. The broken
upward-pointing arrow indicates a potential trigger, while the bold one shows where the actual trigger occurs.
To Set Up Glitch Trigger
1. In the menu bar, touch Trigger, then Trigger Setup... in the drop-down menu.
2. Touch the Glitch trigger button
.
3. Touch inside the Trigger On data entry field and select a source on which to trigger:
