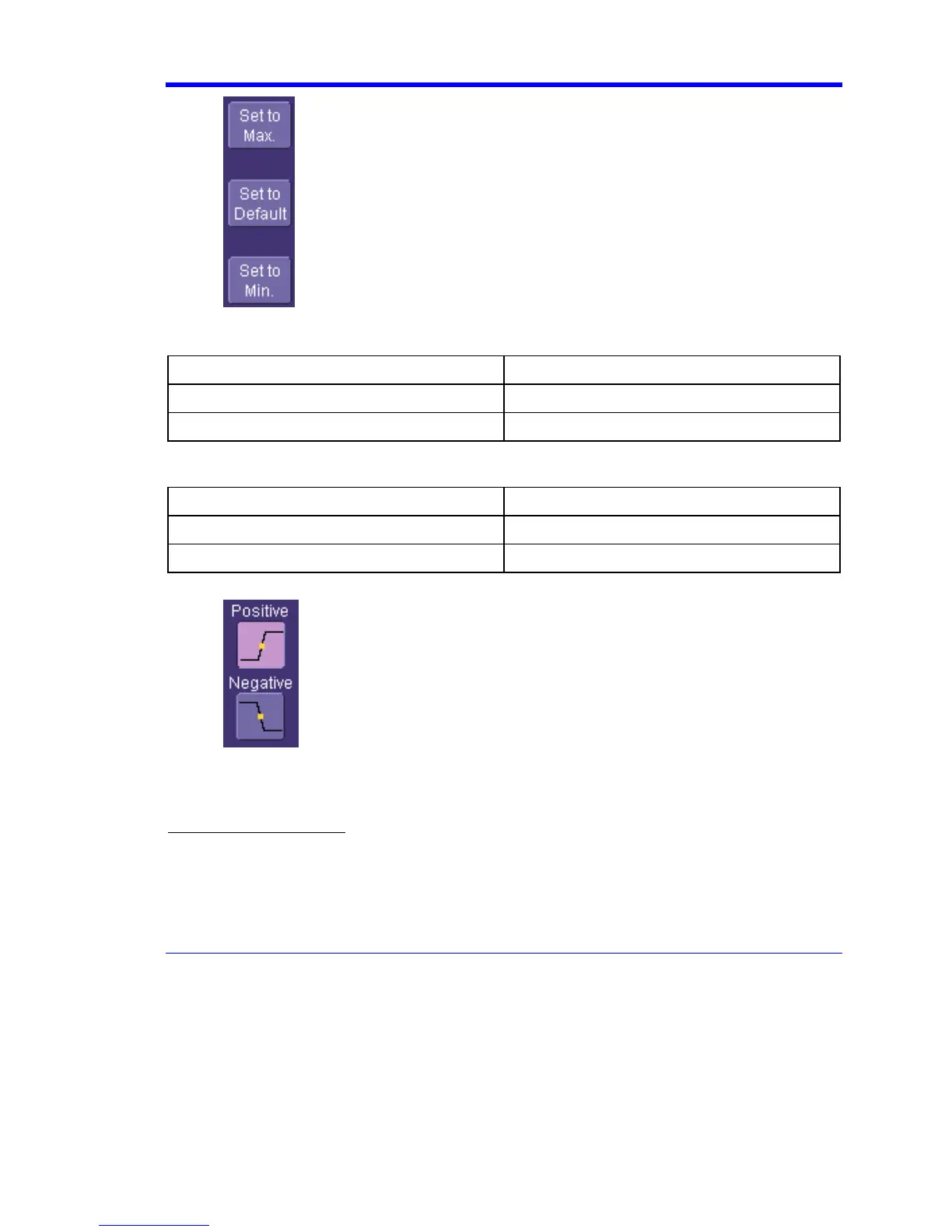

The preset Time values are as follows:
Max.
20.0 s
Default
50.0 ns
Min.
2 ns
The preset Events values are as follows:
Max.
1,000,000,000 events
Default
1 event
Min.
1 event
6. Choose Positive or Negative slope:
.
SMART Triggers
Width Trigger
How Width Trigger Works
Width trigger allows you to define a positive- or negative-going pulse width bounded by a voltage
level, above or below which a trigger will occur. You can specify a pulse width and voltage range,
within or outside of which a trigger will occur.
