X-Stream Operator’s Manual
WM-OM-E Rev I 125
C. Under "3D settings," touch inside the Quality field and select an image quality from
the pop-up menu: wire frame, solid, or shaded.
D. For each axis, touch inside the data entry field and enter a value from -90° to +90°.

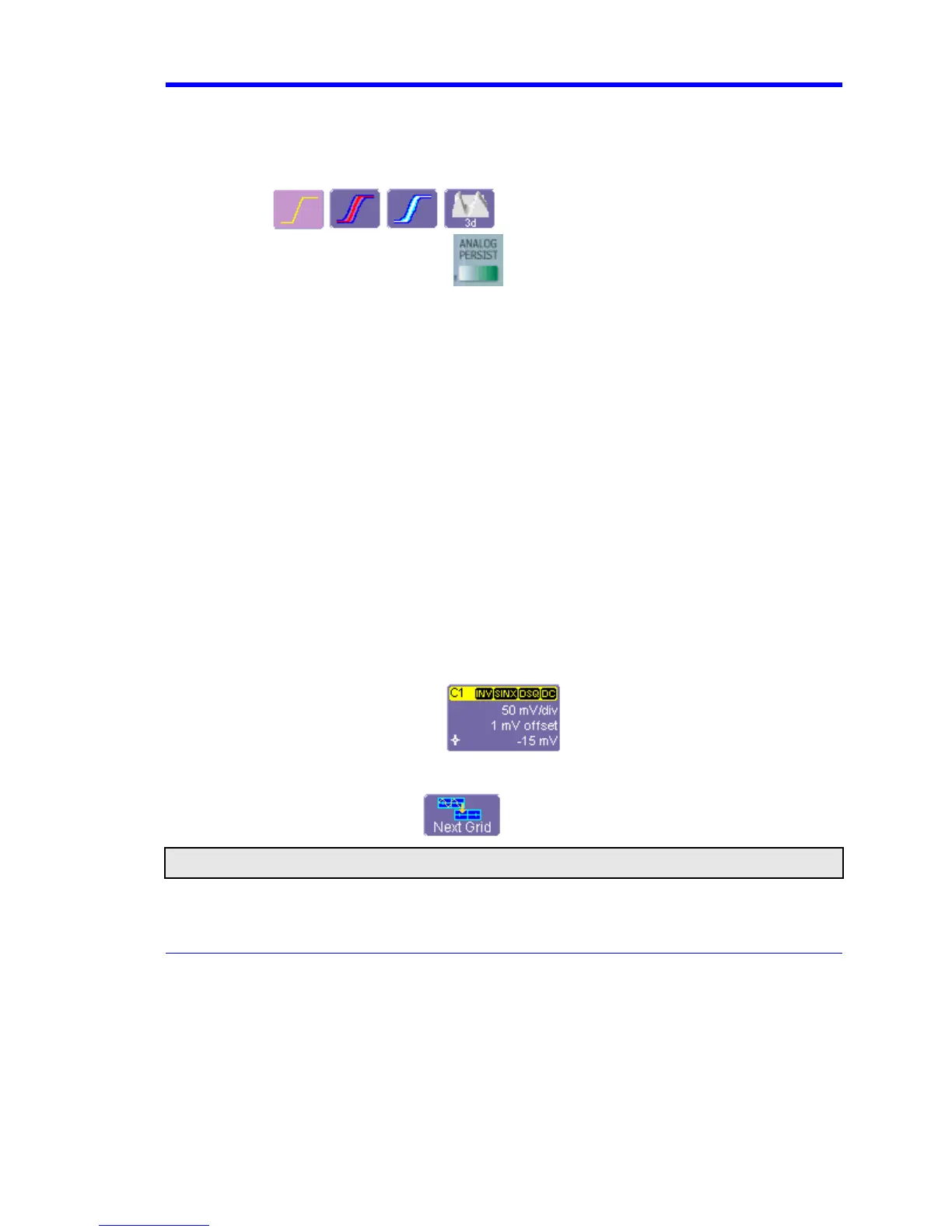

6. To turn off persistence for an individual channel, touch the left-most persistence mode
button
. To turn off persistence for all channels, press the
front panel Analog Persist button
. This button toggles Analog Persistence on and
off.
Screen Saver
The Windows screen saver is activated in the same way as for any PC.
1. Minimize the instrument display by touching File in the menu bar, then Minimize in the
drop-down menu.
2. Touch Start down in the task bar.
3. Touch Settings in the pop-up menu.
4. Touch Control Panel.
5. Touch Display.
6. Touch the Screen Saver tab.
Moving Traces from Grid to Grid
You can move traces from grid to grid at the touch of a button.
To Move a Channel or Math Trace
1. Touch the descriptor label for the waveform that you want to move.
Example Trace Label
2. Touch the Next Grid button
.
Note: If you have more than one waveform displayed on only one grid, a second grid will open automatically when you
select Next Grid.
