LeCroy WavePro 7100A

To Next Page

To Previous Page

316 WM-OM-E Rev I

How to Select a MATLAB Parameter Call

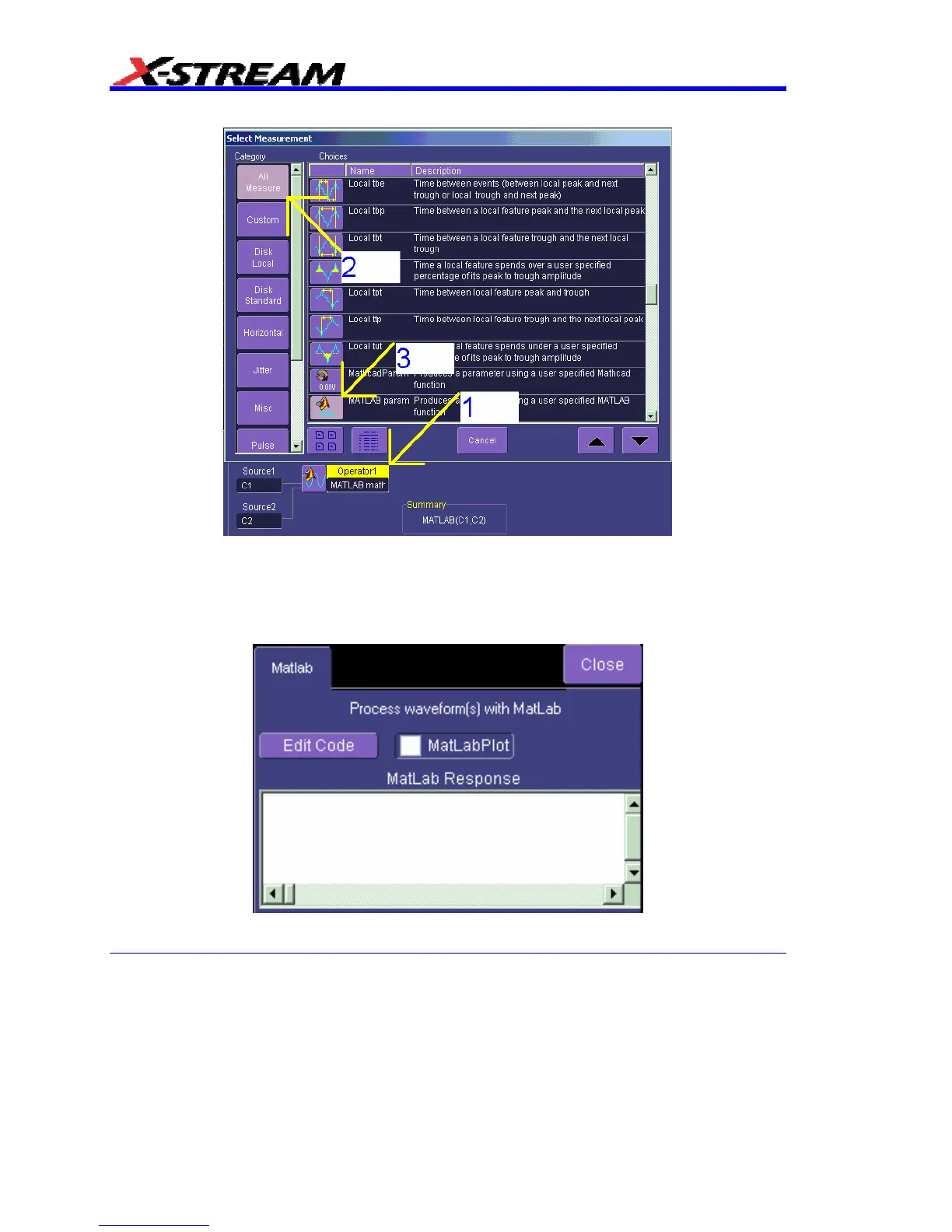

Menu position for MATLAB parameter call in Select Measurement menu.

The MATLAB Parameter Control Panel

Once you have invoked a MATLAB parameter call, a mini-dialog to the right of the main dialog will

appear:

You can touch the MATLAB Plot checkbox if you want to see a plot in MATLAB as well as getting
