LeCroy WavePro 7100A

To Next Page

To Previous Page

X-Stream Operator’s Manual

WM-OM-E Rev I 259

Example 6

Summary

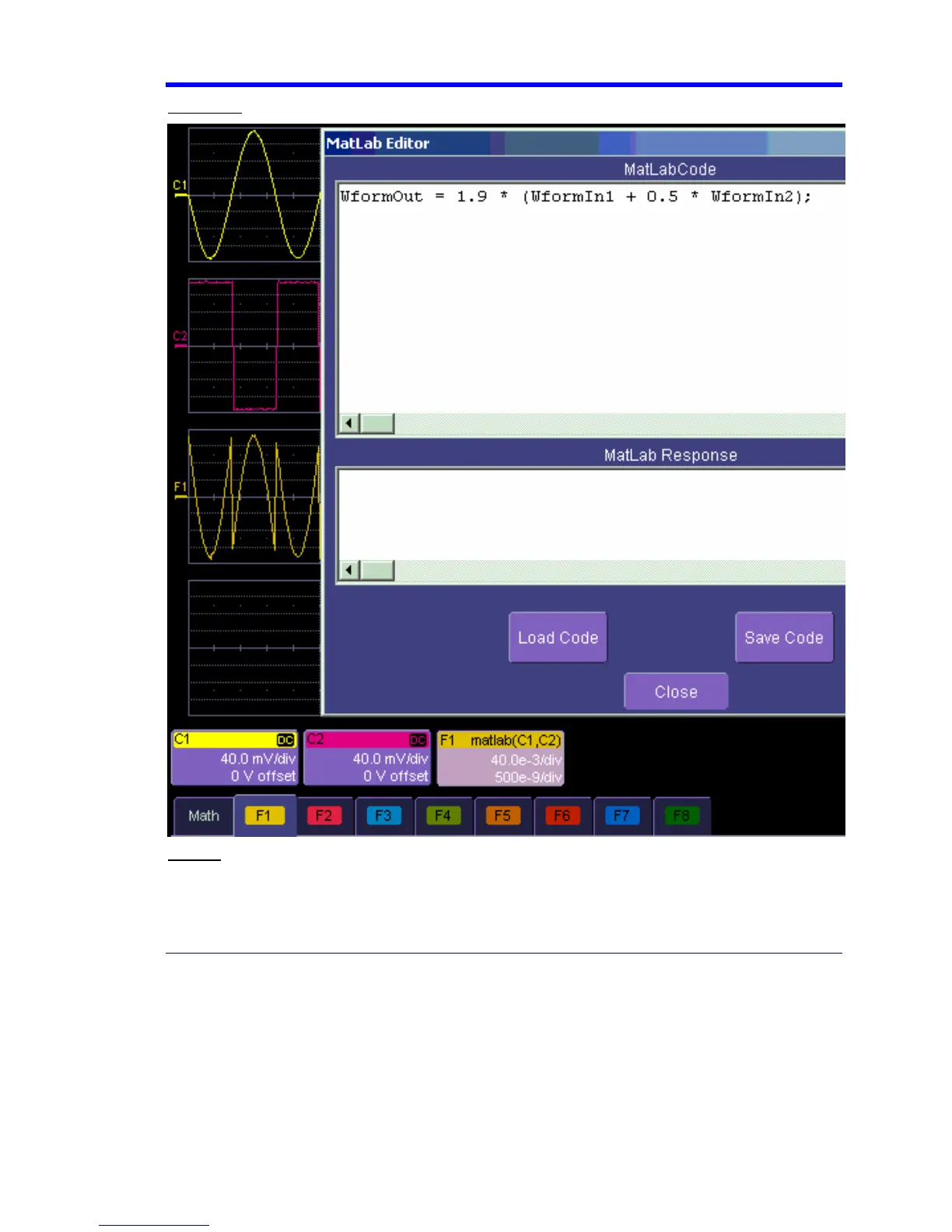

The examples above illustrate only the capability to use VBScript and MATLAB. The instrument

with the LeCroy XMAP software option allows you to use Excel, Mathcad, MATLAB, and VBScript

in this manner. Of course, you will need to load Excel, Mathcad, or MATLAB in the scope (VBScript
