268 WM-OM-E Rev I

Columns D, E and F contain the headers for the three waveforms. These are the set of numbers

that provide the description of the scope settings, such as vertical scale and offset, and number of

samples.

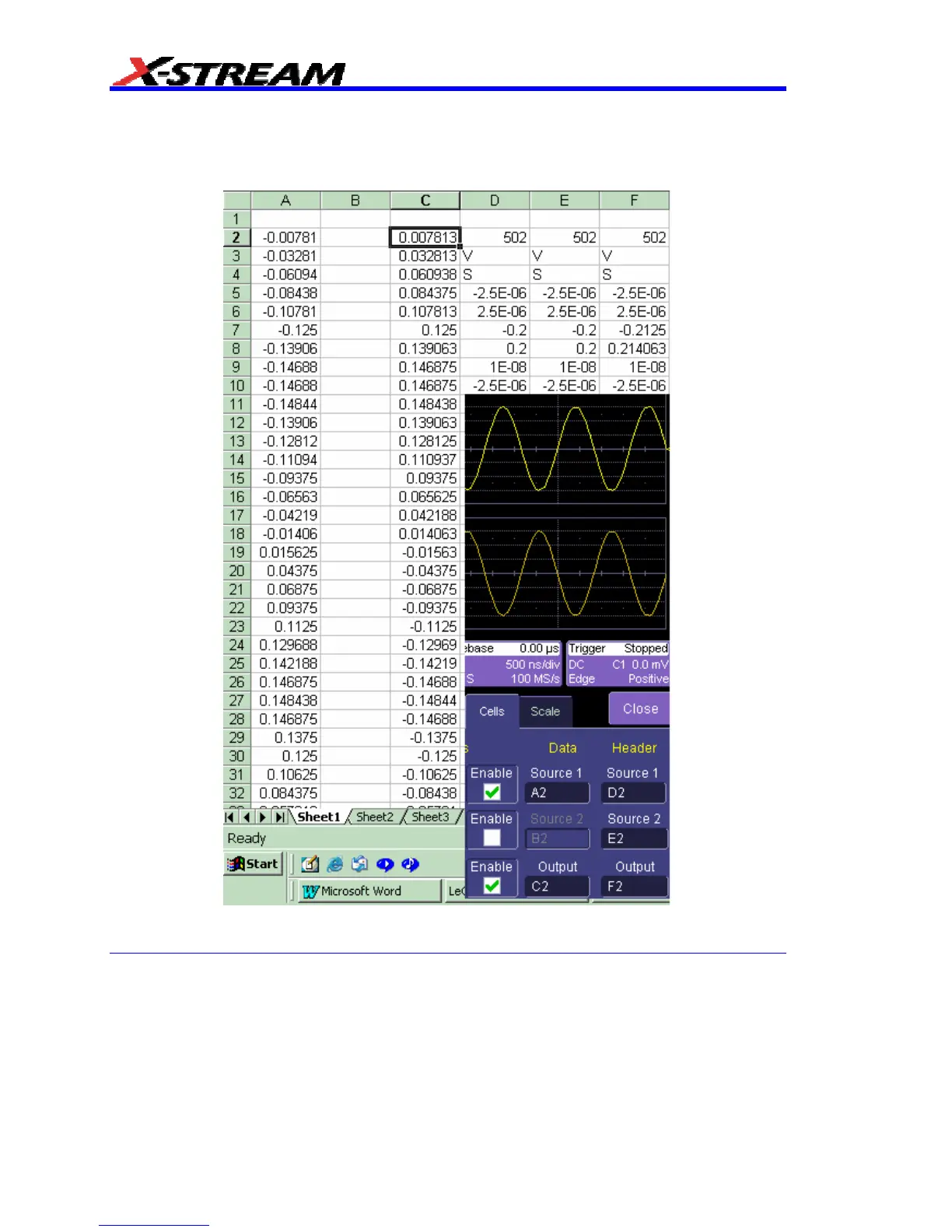

In this figure, the panel has been pasted onto the Excel sheet for comparison:
