330 WM-OM-E Rev I

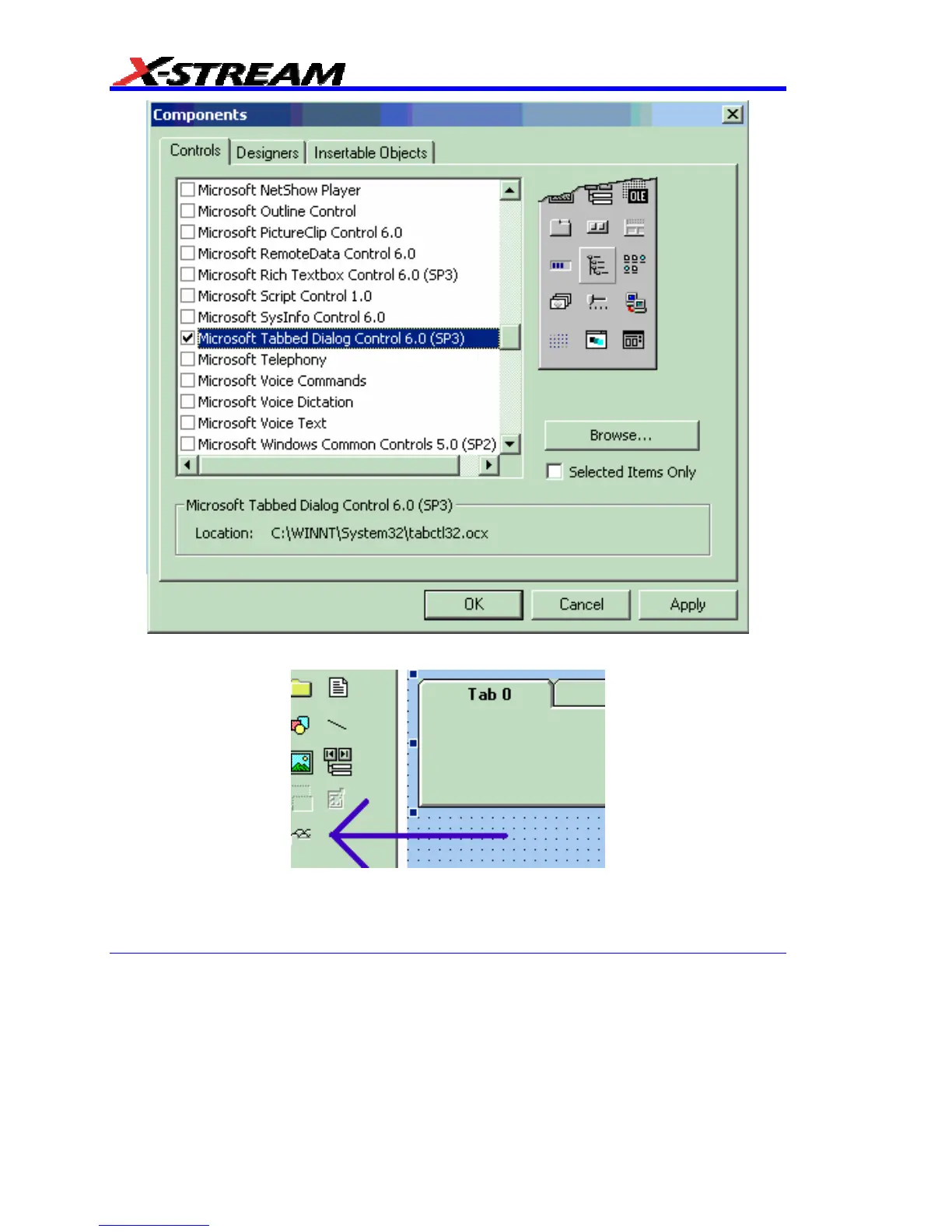

The new control is shown below (arrow).

The system is very versatile, and you can place controls on the tabs of the Tabbed Control. Look in

the properties window to see how you can customize your tabs, as illustrated below.
