If Analyze Region is enabled and Read Gate is not available, only the area of the Head Signal

within the region is analyzed, as shown in Case 3.

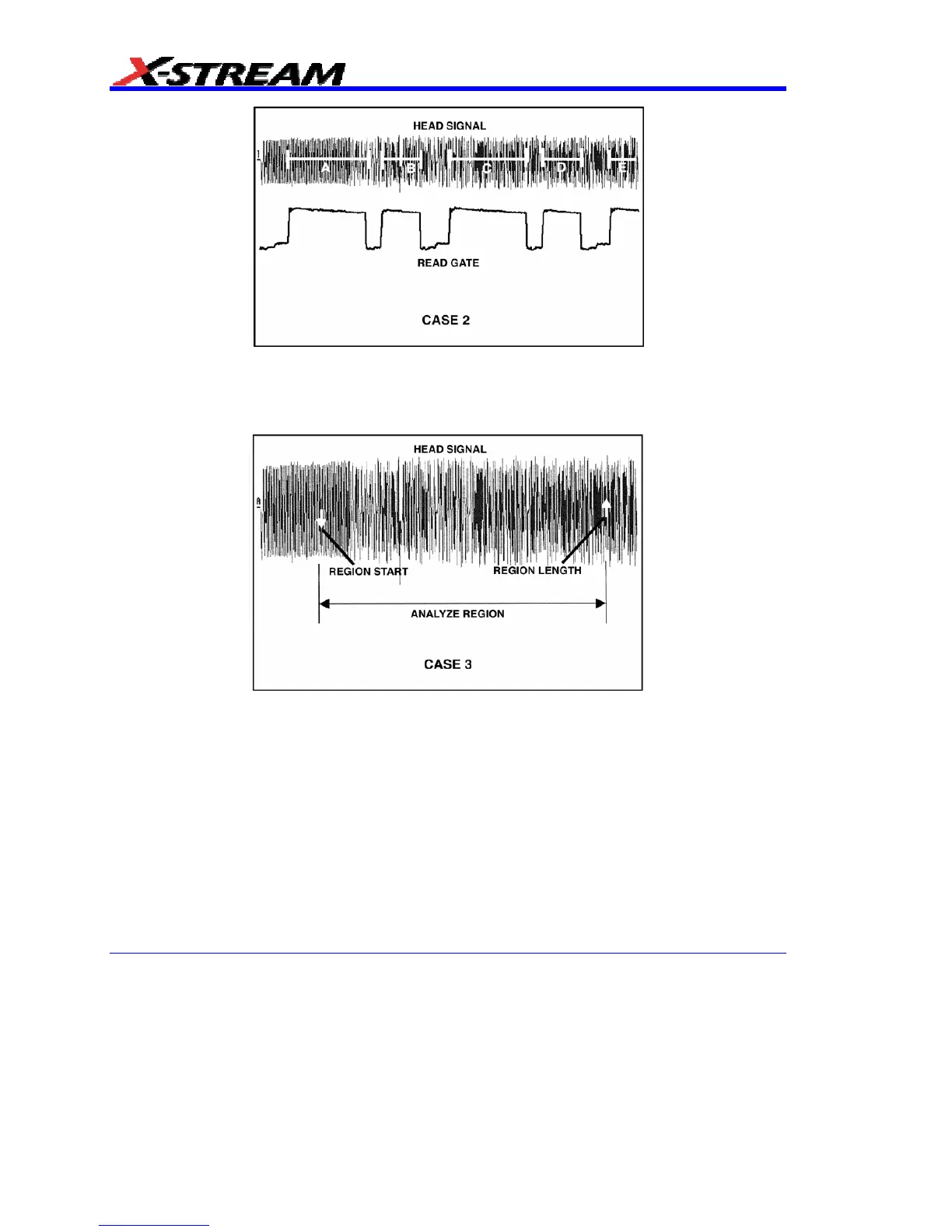

Case 3: Only the area within the Region is analyzed

If neither the markers nor Read Gate are enabled, the entire Head Signal is analyzed (Case 4).
