Controls
Leica HM500/Ref. 10 715 697/Version B
8

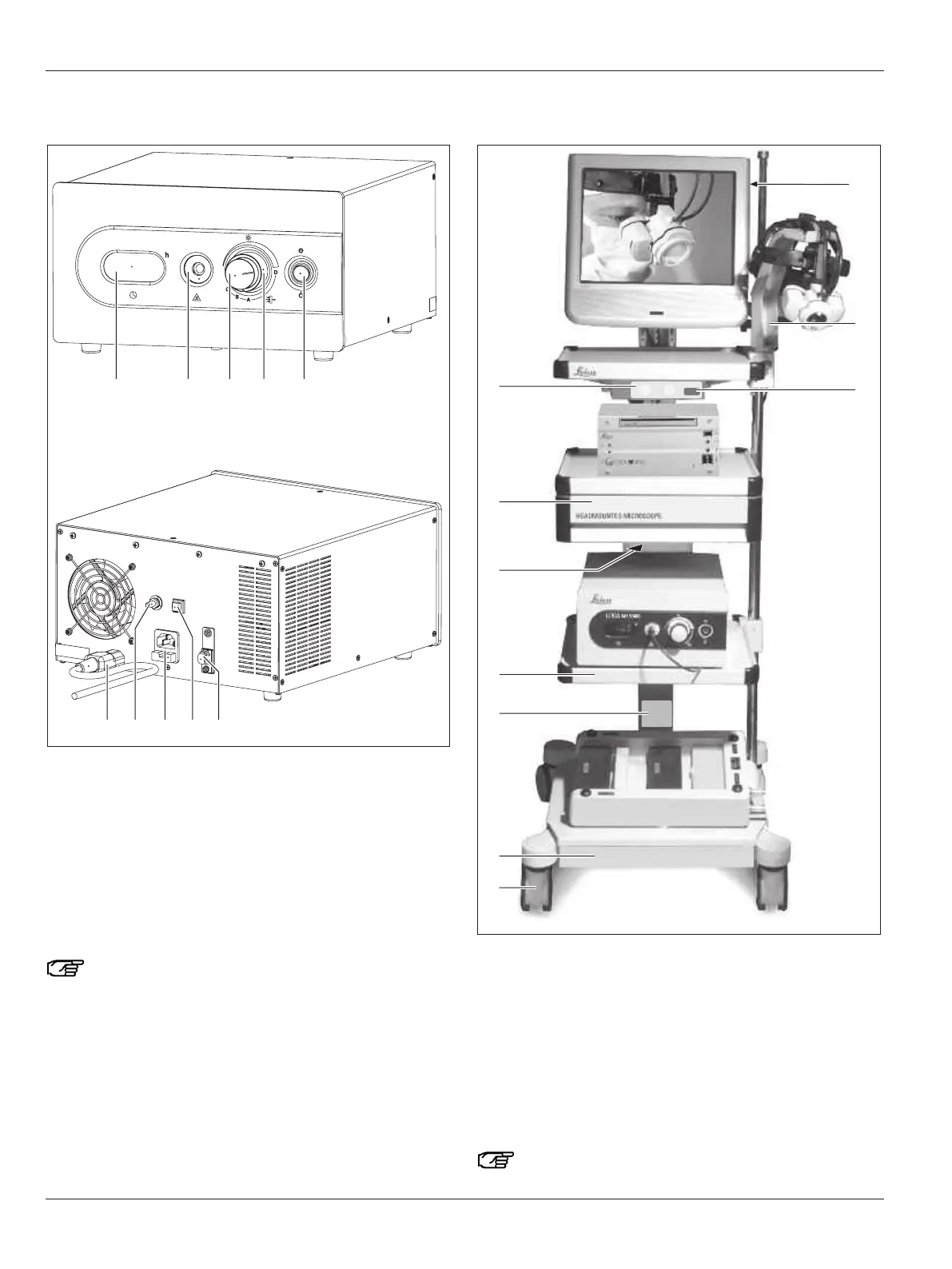

Leica MLS500 light source
57 Display for running-time meter
58 Connection for fiber-optic light guide
59 Rotary knob for diaphragm wheel (brightness control)
60 Rotary knob for filter wheel
61 On/Off switch (stand-by)
62 Strain relief device for power cable
63 Reset button for running-time meter
64 Fuse holder
65 Connection for potential equalization
66 Power cable
To disconnect fully from power supply, pull out the
power plug.
57 58 59 60 61
6263646566
Leica HM500 trolley (optional)
5 Leica HM500 suspension
9 Isolating transformer (optional)
67 VESA 100 flat-screen adapter
68 Power switch for isolating transformer
69 Double casters, lockable
71 Connections for potential equalization
72 Shelf
73 Multiple socket outlet
74 Drawer for accessories
75 Multiple socket outlet
See also the user manual of the Leica HM500 trolley.
67
9
68
69
71
73
74
75
72
5
