Controls
7Leica HM500/Ref. 10 715 697/Version B

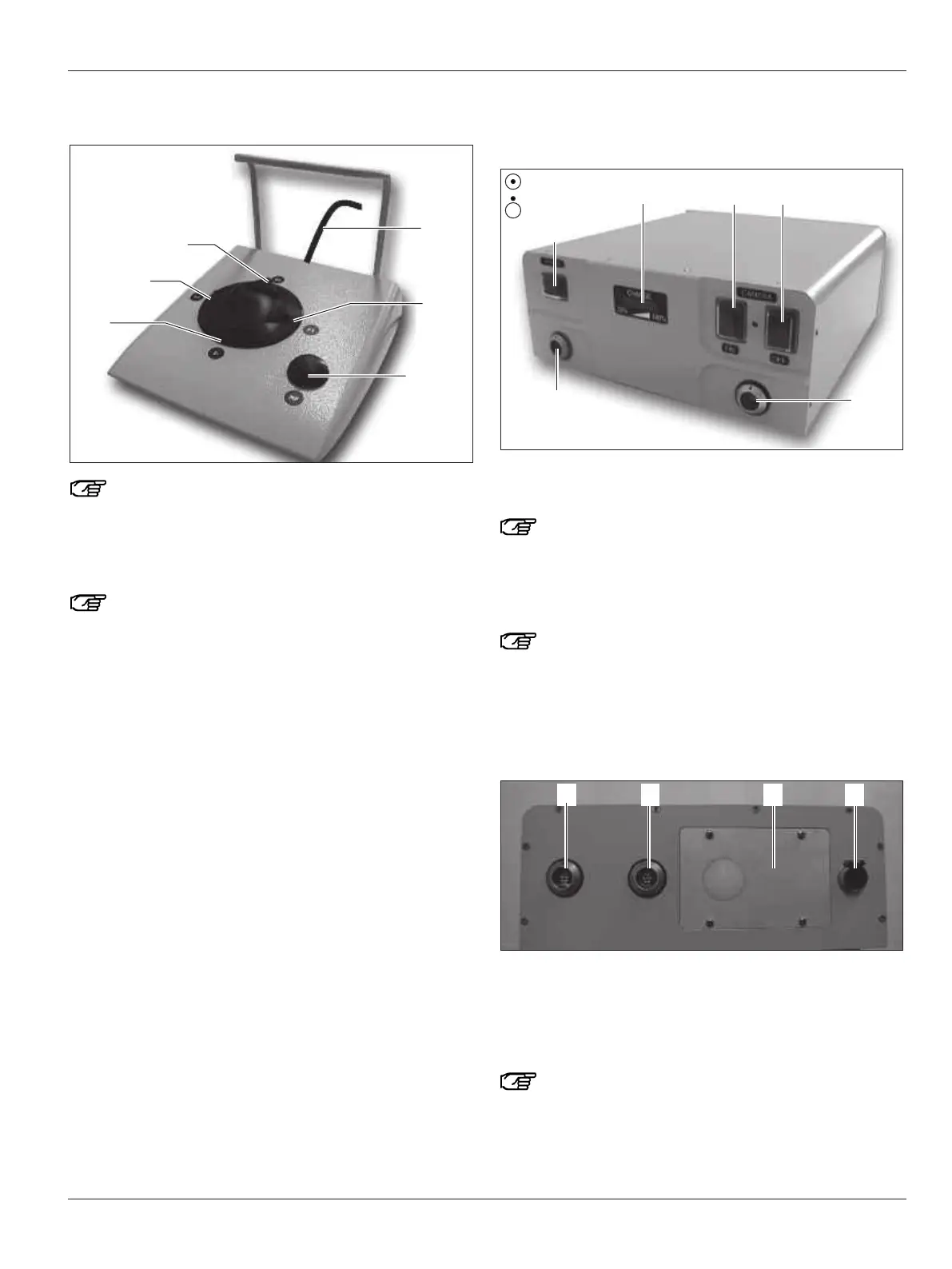

Leica HM500 Dental footswitch
An acoustic signal is given when any button, switch or
rocker switch is operated.
41 Cable with plug for connection to the Dental databox
42 Button for focus up
43 Button for manual focus/autofocus
Holding this down will activate the autofocus
(speed focus function) (see page 27).
44 Button for zoom down
45 Button for focus down
46 Button for zoom up
Leica HM500 Dental databox
Front view
47 On/Off switch
48 Charge level indicator
The charge level indicator (48) shows the charge level
of the battery in 20 % steps between 0 % and 100 %. All
5 yellow lights flashing means the battery is fully
charged and is ready again for use.
49 Switch for camera on
Holding this down will activate the white balancing
function (see page 16)
50 Switch for camera off
51 Socket for microscope-Dental databox data cable
52 Socket for footswitch-Dental databox footswitch cable
Rear view
53 Socket for camera output, for example, to the monitor
(optional)
54 RS232 connection (for default settings)
55 Battery compartment
56 Socket for power pack cable
Color coding:
black = data cable socket (51)
orange = footswitch cable socket (52)
blue = camera output socket (53)
green = RS232 connection (54)
O
n
Off
