Leica Microsystems HM500 - Leica HM500 Field of View;Magnification

Technical Data
52
Leica HM500/Ref. 10 715 697/Version B
Leica HM500 field of view/magnification
Field of view/magnification of standard eyepieces 20x: 2.9 - 7x magnification
Distance eye – object Distance microscope – object
1
)
Magnification
2
)
Field of view
300 mm Approx. 200 mm min. 72 mm
300 mm Approx. 200 mm max. 30 mm
400 mm Approx. 300 mm min. 110 mm
400 mm Approx. 300 mm max. 45 mm
500 mm Approx. 400 mm min. 148 mm
500 mm Approx. 400 mm max. 61 mm
600 mm Approx. 500 mm min. 186 mm
600 mm Approx. 500 mm max. 76 mm
700 mm Approx. 600 mm min. 224 mm
700 mm Approx. 600 mm max. 92 mm
Optional: Interchangeable eyepieces I 14x: 2.0 - 4.8x magnification
Distance eye – object Distance microscope – object
1
)
Magnification
2
)
Field of view
300 mm Approx. 200 mm min. 72 mm
300 mm Approx. 200 mm max. 30 mm
400 mm Approx. 300 mm min. 110 mm
400 mm Approx. 300 mm max. 45 mm
500 mm Approx. 400 mm min. 148 mm
500 mm Approx. 400 mm max. 61 mm
600 mm Approx. 500 mm min. 186 mm
600 mm Approx. 500 mm max. 76 mm
700 mm Approx. 600 mm min. 224 mm
700 mm Approx. 600 mm max. 92 mm
Optional: Interchangeable eyepieces II 26x: 3.75 - 9x magnification
Distance eye – object Distance microscope – object
1)
Magnification
2)
Field of view
300 mm Approx. 200 mm min. 56 mm
300 mm Approx. 200 mm max. 25 mm
400 mm Approx. 300 mm min. 86 mm
400 mm Approx. 300 mm max. 38 mm
500 mm Approx. 400 mm min. 116 mm
500 mm Approx. 400 mm max. 51 mm
600 mm Approx. 500 mm min. 146 mm
600 mm Approx. 500 mm max. 64 mm
700 mm Approx. 600 mm min. 176 mm
700 mm Approx. 600 mm max. 77 mm
Since the performance of optical components is usually prone
to fluctuations, a tolerance of +/-10 % could apply to these
figures.
1)
Reference value: depends on the actual setting of the
Leica HM500
2)
depends on the actual distance of the Leica HM500

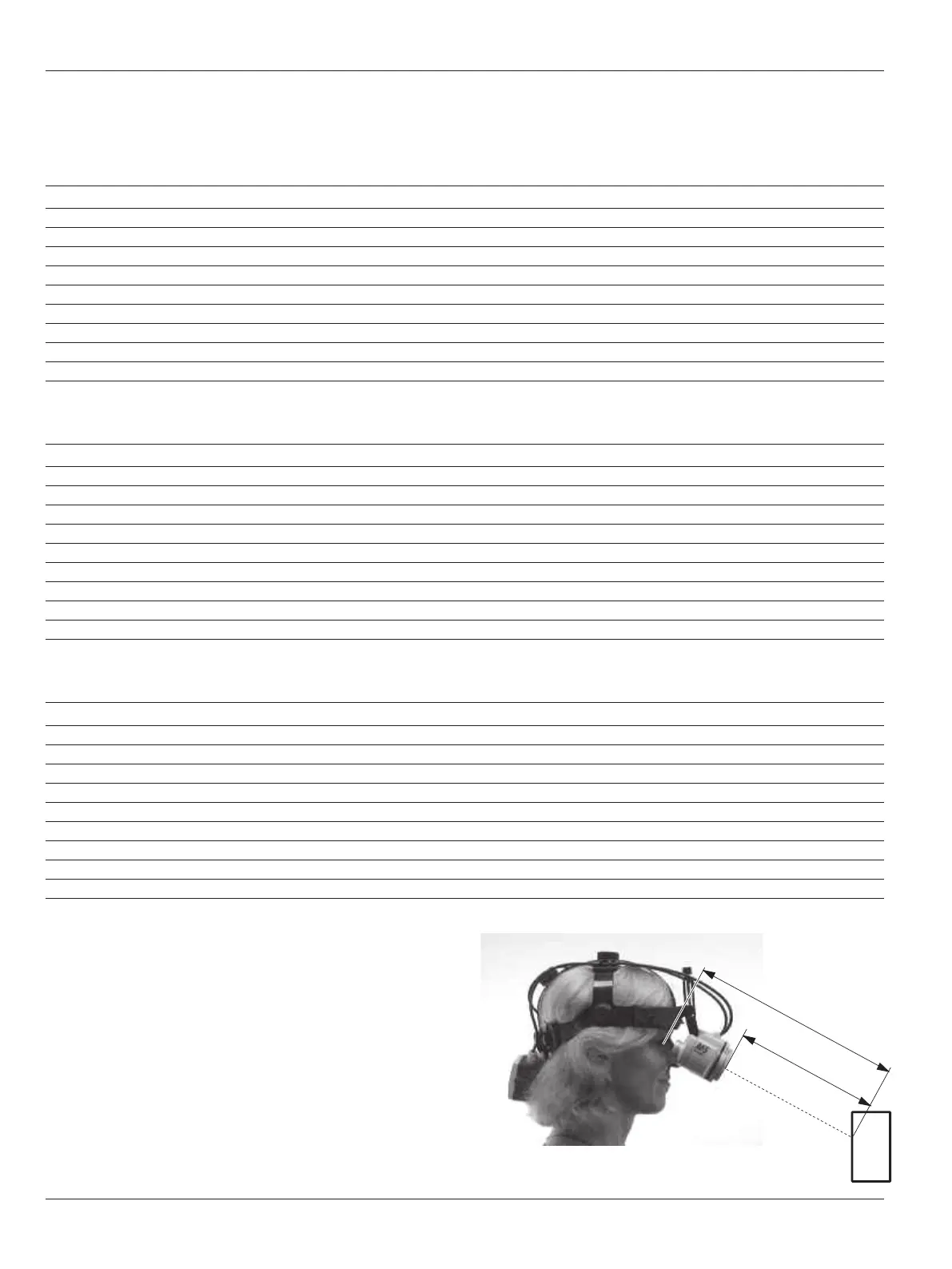

Distan
ce ey
e –
o
b
j
ec
t
Distance mic
r
osc
o
p
e
– o
b
je
c
t
Object
