Lenovo ThinkServer TS430 Hardware Maintenance Manual

5.LocatetheiKVMkeyconnectoronthesystemboardandtheninserttheiKVMkeyintotheiKVMkey
connector.
Note:MakesurethattheiKVMkeyissecurelyseatedonthesystemboard.

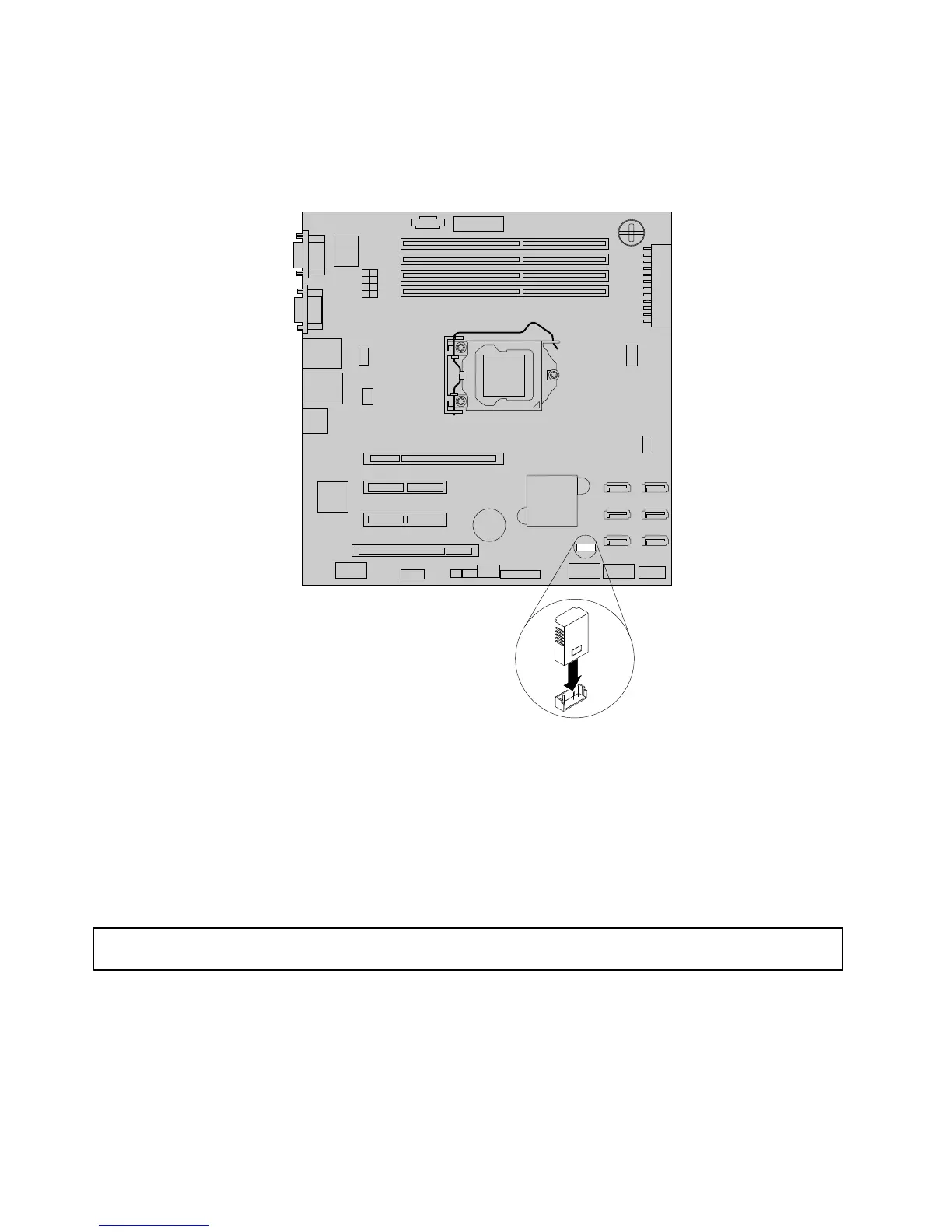

Figure55.InstallingtheiKVMkey
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage177
.Then,youcanrefer
totheRemoteManagementModuleUserGuideonthedocumentationDVDthatcomeswithyourserver
formoreinformationabouttheremotemanagementfunctionandserverremotemanagement.
RemovingtheiKVMkey
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiiiand“Guidelines”onpage85.
ThistopicprovidesinstructionsonhowtoremovetheiKVMkeyiftheserverhasoneinstalled.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
116ThinkServerTS430HardwareMaintenanceManual
