Notes:
1.UseanydocumentationthatcomeswiththeiKVMkeyandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
2.IfyouremovetheiKVMkey,theremotemanagementfunctionforserverremotemanagementis
unavailable.
ToremovetheiKVMkey,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage87.
3.Laytheserveronitssideforeasieroperation.
4.LocatetheiKVMkeyonthesystemboardandthenlifttheiKVMkeystraightuptoremoveitfromthe
iKVMkeyconnector.

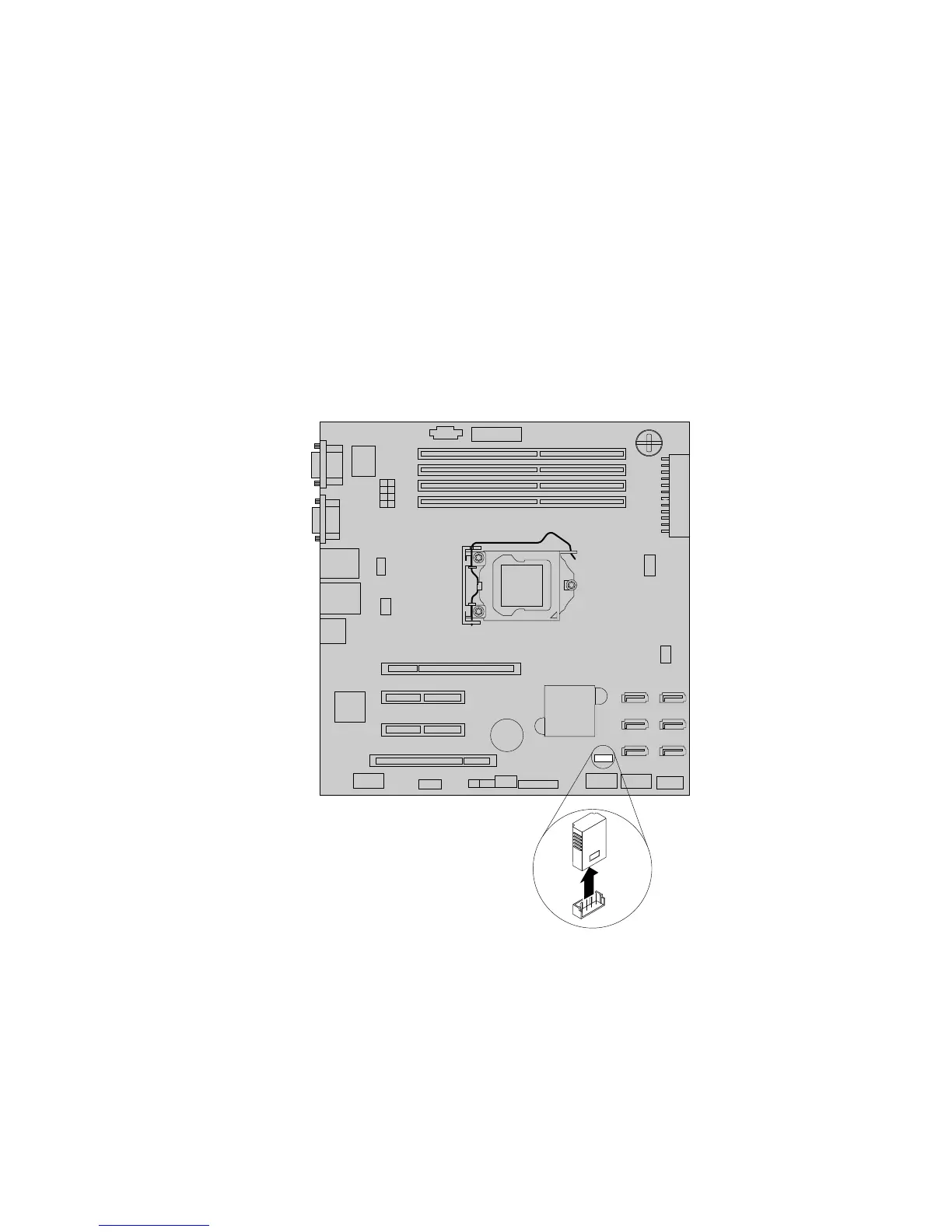

Figure56.RemovingtheiKVMkey
5.IfyouareinstructedtoreturntheoldiKVMkey,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage177
.
Chapter6.Installing,removing,orreplacinghardware117
