Lenovo ThinkServer TS430 Hardware Maintenance Manual

3.Thenon-hot-swapharddiskdrivesareinstalledinthelowerhard-disk-drivecageandareprotected
byanEMI-protectivepanel.Pressthesmalltab1ontheEMI-protectivepanelfromthebottomand
thenpivottheEMI-protectivepanelupwardtoremoveitfromthechassisandgainaccesstothe
non-hot-swaphard-disk-drivebays.
CPU
MEM
PSU
CPU
MEM
PSU
1
2

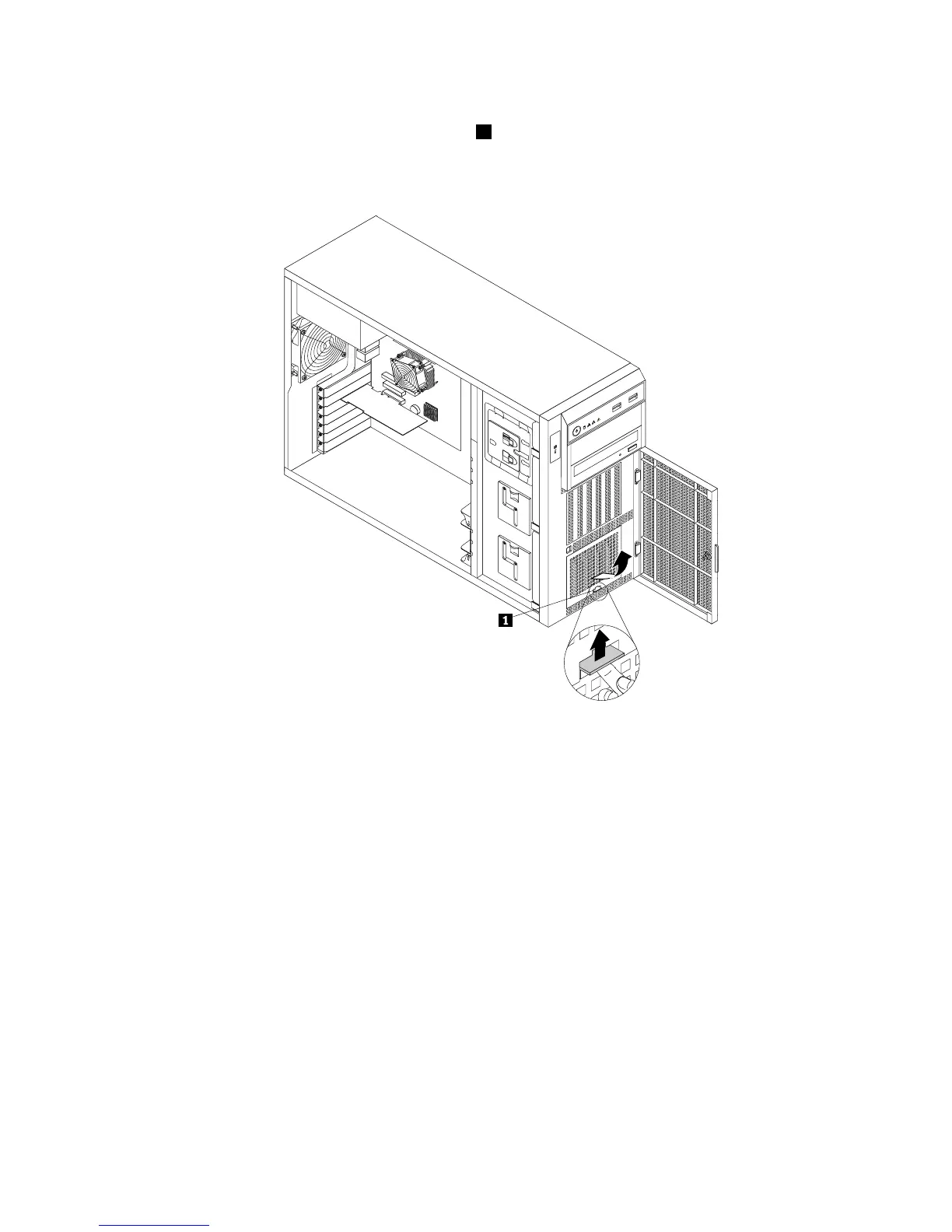

Figure75.RemovingtheEMI-protectivepanel
4.Removetheservercover.See“Removingtheservercover”onpage87.
5.Removethefrontsystemfan1.See“Replacingthefrontsystemfan”onpage158.
6.Locatetheappropriatenon-hot-swaphard-disk-drivebay.See“Servercomponents”onpage25.
7.Touchthestatic-protectivepackagethatcontainsthenewnon-hot-swapharddiskdrivetoany
unpaintedsurfaceontheoutsideoftheserver.Then,takethenewnon-hot-swapharddiskdriveand
thesignalcableoutofthepackage.
Note:Donottouchthecircuitboardontheharddiskdrive.
Chapter6.Installing,removing,orreplacinghardware139
