•Forthe2.5-inchhot-swaphard-disk-drivecage,installthesixscrewstosecurethebackplaneon
thecage.

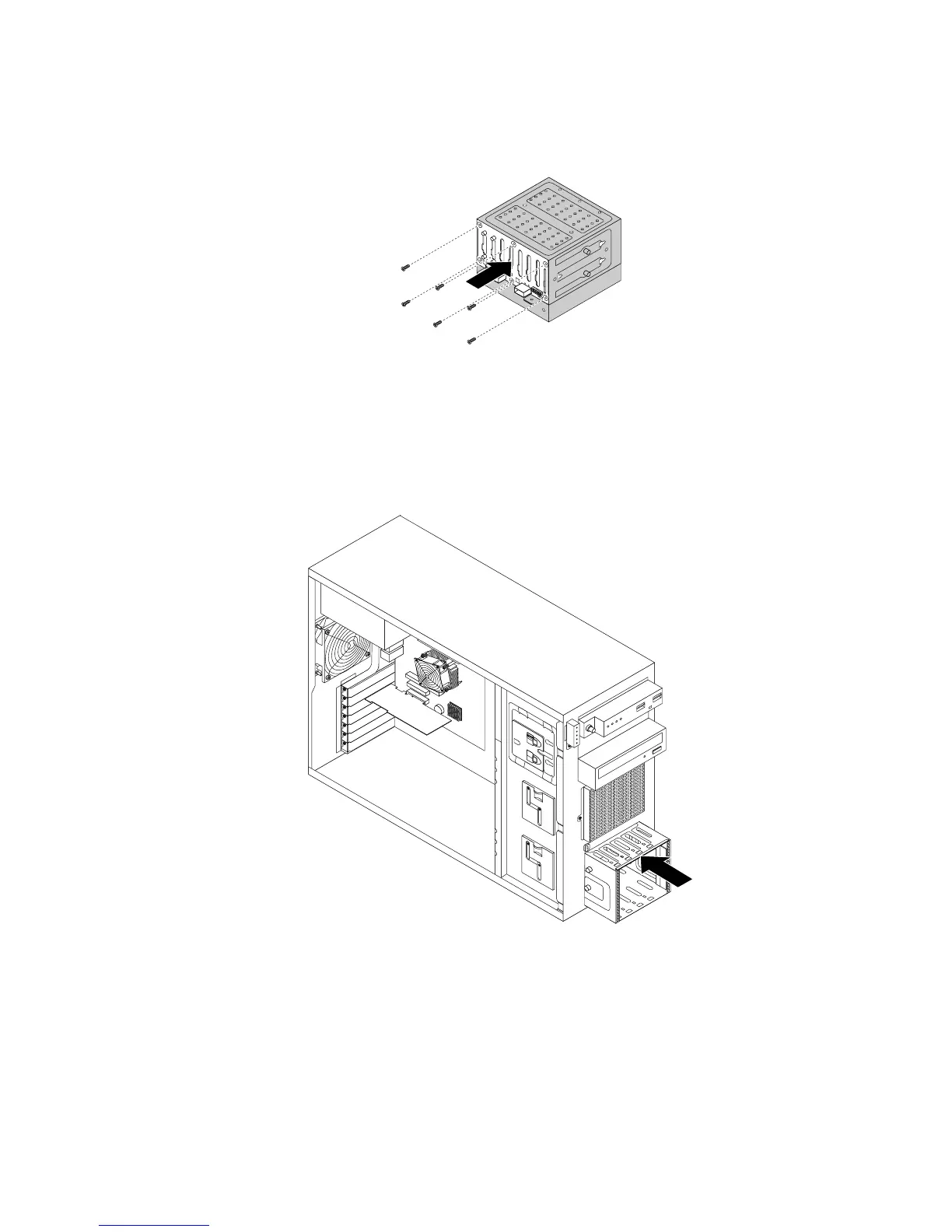

Figure83.Installingthe2.5-inchhot-swaphard-disk-drivebackplane
12.Slidethehard-disk-drivecageintothechassisfromthefrontuntilitsnapsintoposition.
Note:Thefollowingillustrationshowsthe3.5-inchhard-disk-drivecage.Forthe2.5-inchhard-disk-drive
cage,theinstallationprocedureisthesame.
Figure84.Installingthehard-disk-drivecage
13.Reinstallallthehot-swapharddiskdrivesanddummytrays(ifany)inthehard-disk-drivecage.See
“Installingorreplacingahot-swapharddiskdrive”onpage128
.
14.Refertoyournotetoreconnectthecablestothebackplane.
15.Reinstallthefrontsystemfan.See“Replacingthefrontsystemfan”onpage158.
16.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.
Chapter6.Installing,removing,orreplacinghardware145
