5.Pressthetwotabsofthefrontsystemfantowardseachotheruntilthetwotips1arealignedwiththe
correspondingholesinthechassis.Then,carefullyslidethefrontsystemfanoutofthechassis.

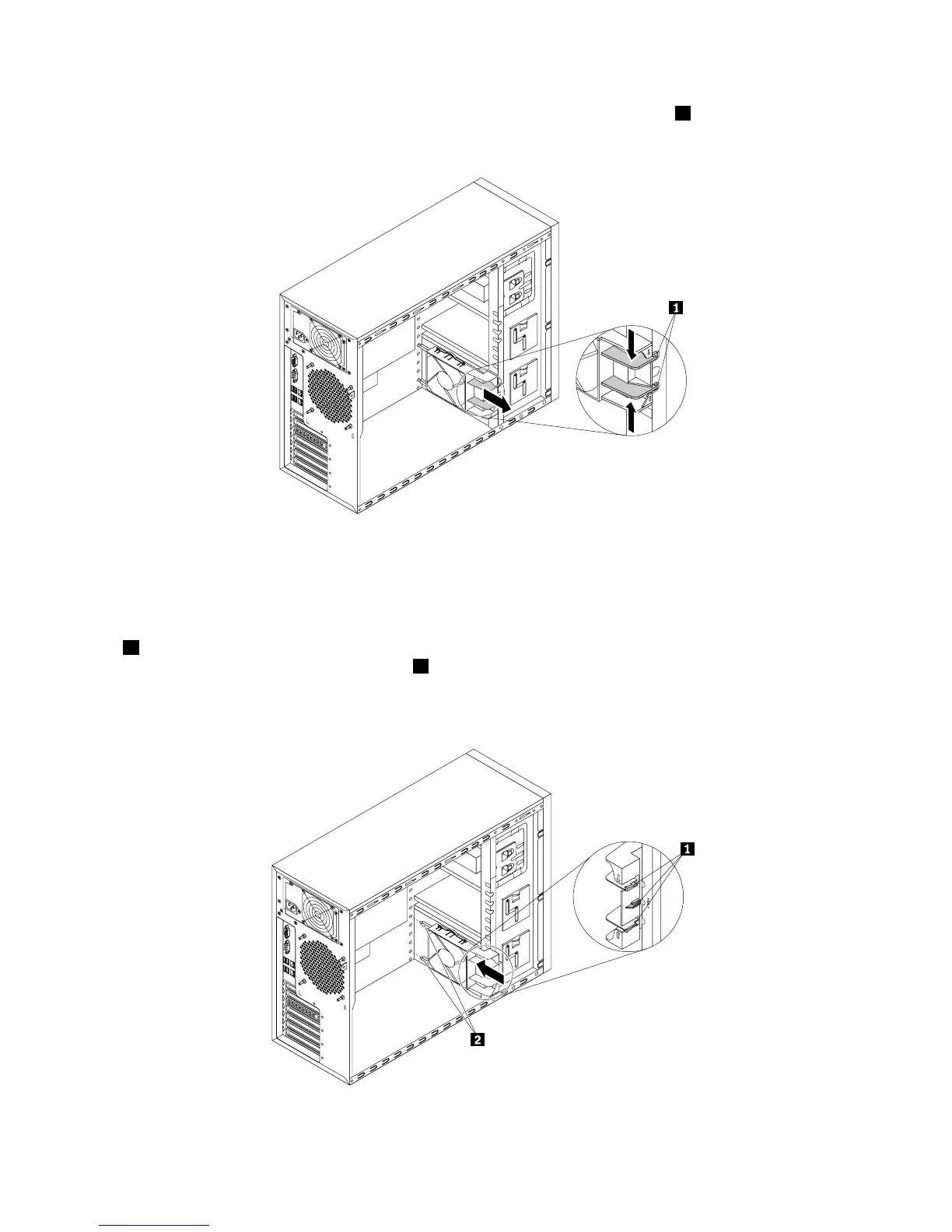

Figure94.Removingthefrontsystemfan
6.Touchthestatic-protectivepackagethatcontainsthenewfrontsystemfantoanyunpaintedsurfaceon
theoutsideoftheserver.Then,removethenewfrontsystemfanfromthepackage.
7.Positionthenewfrontsystemfanonthesystemfan1mountingareaofthechassissothatthethreetips
1onthebottomofthefrontsystemfanarealignedwiththecorrespondingholesinthemountingarea.
Meanwhile,makesurethatthetwoposts2ofthefrontsystemfanarealignedwiththecorresponding
holesintheinnersideofthechassis.Then,carefullyslidethefrontsystemfanintothechassisuntil
itsnapsintoposition.
Figure95.Installingthefrontsystemfan
160ThinkServerTS430HardwareMaintenanceManual
