Notes:
•IfyouremovetheTR700Battery,youwilllosethebackuppowerfortheThinkServerRAID700Adapter.
•UseanydocumentationthatcomeswiththeTR700Batteryandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
ToremovetheTR700Battery,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage65.
3.Laytheserveronitssideforeasieroperation.
4.RemovethePCIcardbracketassembly.See“RemovingandreinstallingthePCIcardbracketassembly”
onpage69
.
5.LocatetheThinkServerRAID700Adapter,whichislocatedinthePCI-Eslot1onthesystemboard.
6.RemovetheThinkServerRAID700Adapter,whichisakindofRAIDcard.See“Installingorremoving
theRAIDcard”onpage80
.
7.CarefullyremovethethreescrewsthatsecuretheTR700BatteryandthenremovetheTR700Battery
fromtheThinkServerRAID700Adapter.
Note:Centerthescrewdriverwhenyouremovethescrewstoavoidpossibledamagetoanyparts.

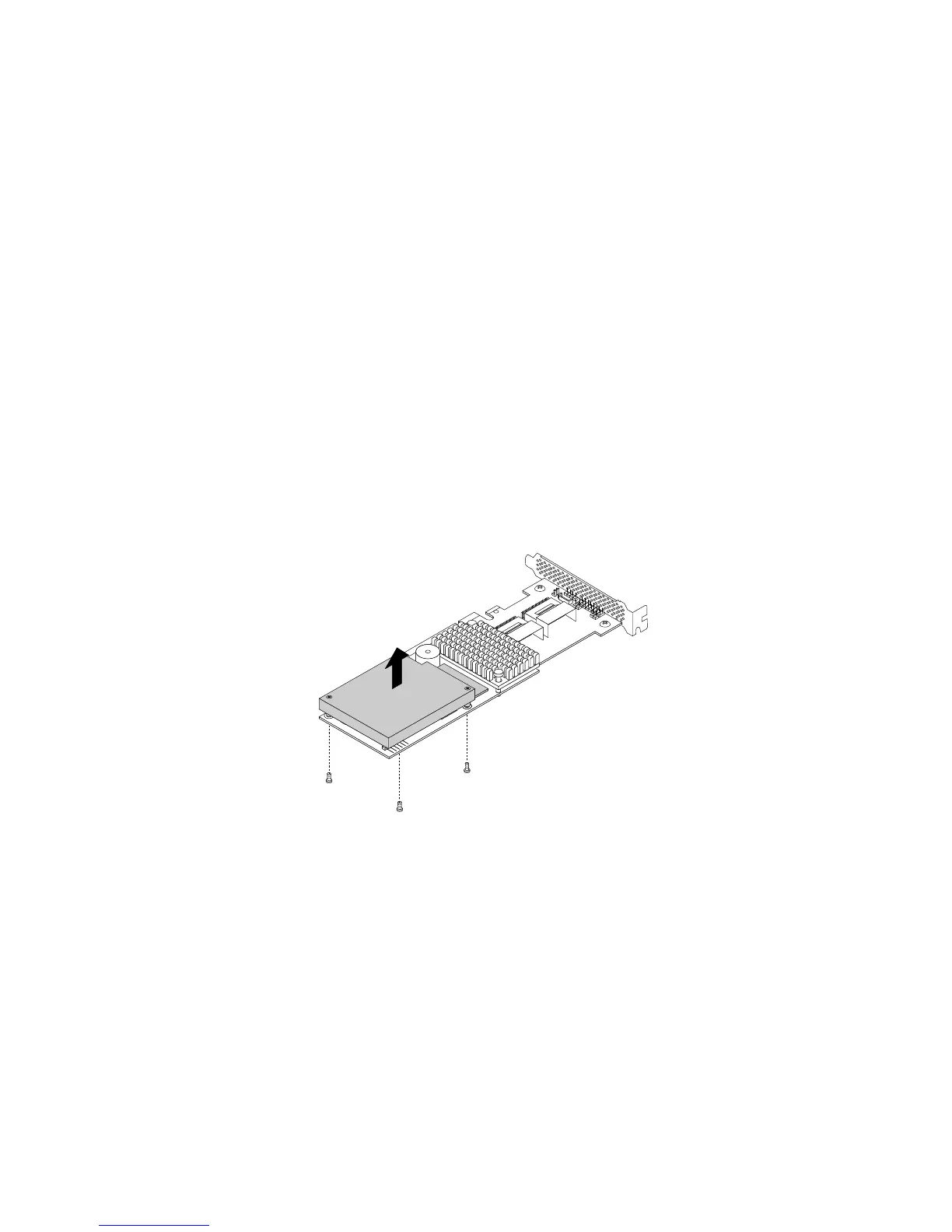

Figure44.RemovingtheTR700Battery
8.IfyouwanttoinstallanewTR700Battery,see“InstallingtheTR700Battery”onpage86.
9.ReinstalltheThinkServerRAID700AdapterwithanewTR700BatteryorwithoutaTR700Battery.See
“InstallingorremovingtheRAIDcard”onpage80.
10.ReinstallthePCIcardbracketassembly.See“RemovingandreinstallingthePCIcardbracket
assembly”onpage69
.
11.IfyouareinstructedtoreturntheoldTR700Battery,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage141.
