Notes:
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
•Useanydocumentationthatcomeswiththeopticaldriveandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
Toinstallorreplaceanopticaldrive,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage65.
3.Locatetheopticaldrivebays.See“Servercomponents”onpage22.
4.Dependingonwhetheryouareinstallingorreplacinganopticaldrive,dooneofthefollowing:
•Ifyouareinstallingasecondaryopticaldriveintheupperopticaldrivebay,removethefrontbezel.
See“Removingandreinstallingthefrontbezel”onpage67
.Then,removetheplasticshieldforthe
bayfromthefrontpanel.Removethescrew
1thatsecuresthemetalEMIshieldcoveredonthe
upperopticaldrivebay.InsertangerintotheholeintheEMIshieldandcarefullypulltheEMI
shieldoutofthefrontofthechassis.

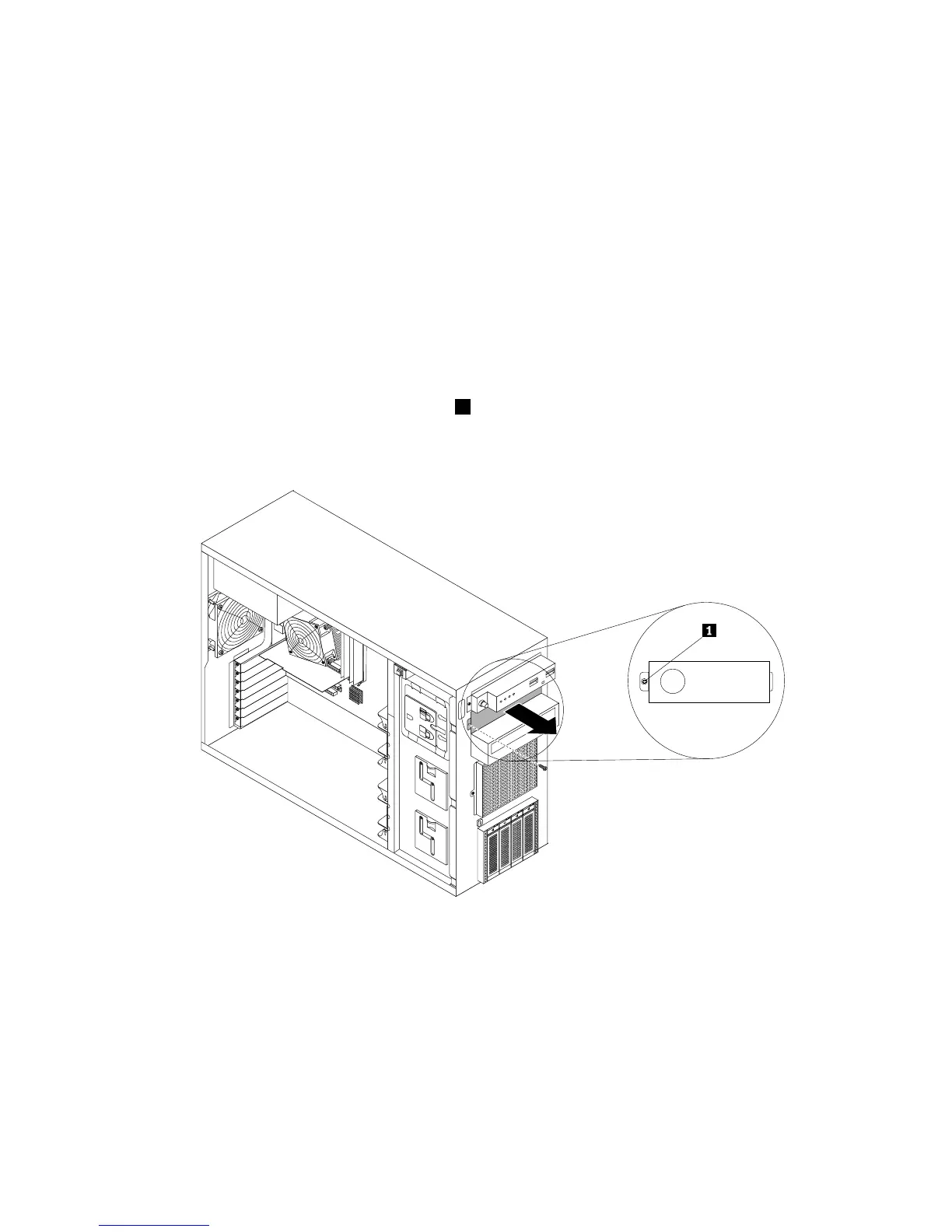

Figure45.RemovingtheEMIshieldfortheupperopticaldrivebay
