4.Thenon-hot-swapharddiskdrivesareinstalledinthelowerharddiskdrivecageandareprotected
byanEMI-protectivepanel.Pressthesmalltab1ontheEMI-protectivepanelfromthebottom,and
thenpivottheEMI-protectivepanelupwardtoremoveitfromthechassisandgainaccesstothe
non-hot-swapharddiskdrives.

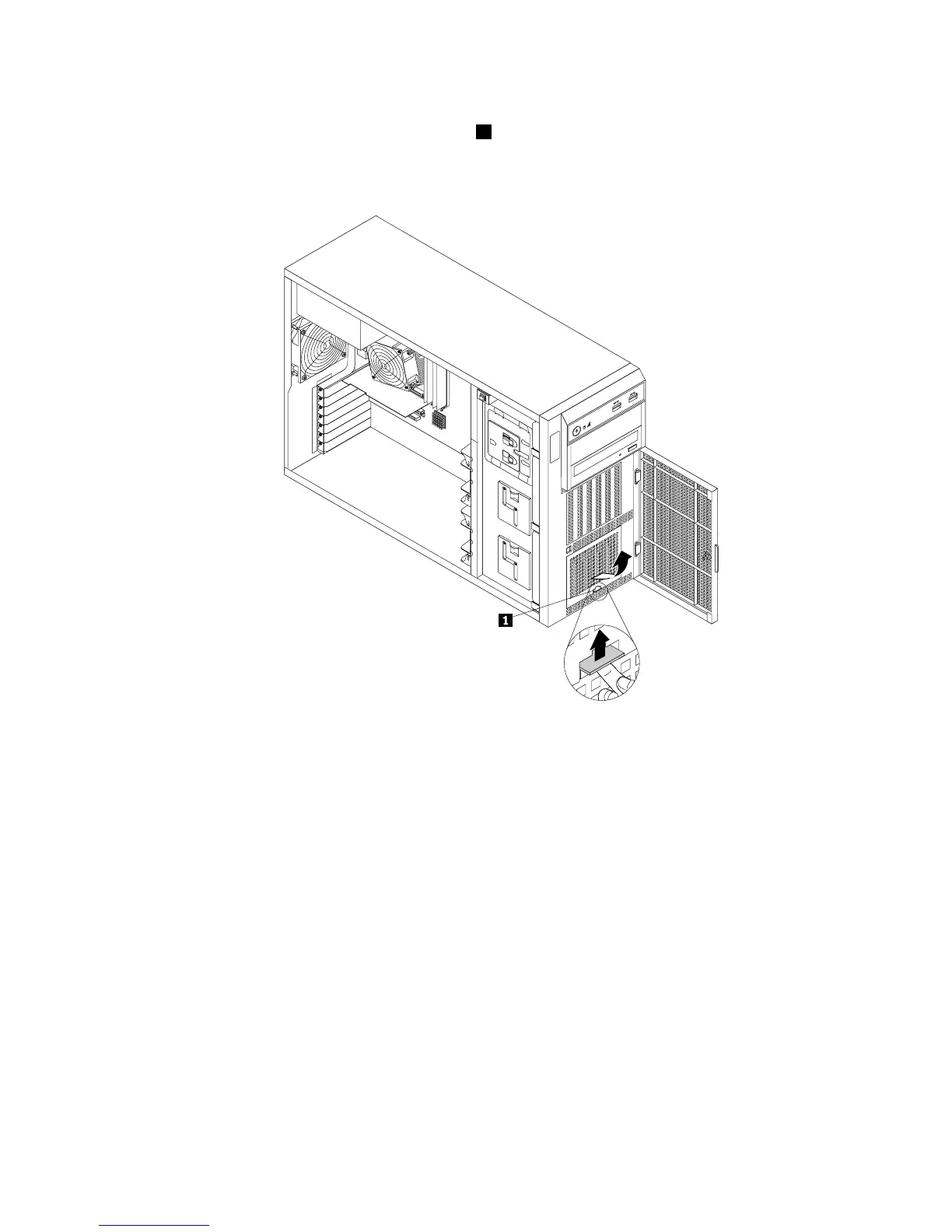

Figure55.RemovingtheEMI-protectivepanel
5.Removethefrontsystemfan1.See“Replacingthefrontsystemfan1”onpage128.
6.Locatethenon-hot-swapharddiskdrive.See“Servercomponents”onpage22.Then,disconnectthe
SATAsignalcableandthepowercablefromtherearofthenon-hot-swapharddiskdrive.
Chapter6.Installing,removing,orreplacinghardware99
