Note:Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
Toreinstalltheservercoverandreconnectcablestoyourserver,dothefollowing:
1.Ensurethatallcomponentshavebeenreassembledcorrectlyandthatnotoolsorloosescrewsare
leftinsideyourserver.
2.Refertoyournotetoconnectinternalcables.Ensurethatallinternalcablesareroutedcorrectlyand
securedbyanycableclipsortiesintheserver.Keepcablesclearofthehingesandsidesoftheserver
chassistoavoidinterferencewithreinstallingtheservercover.

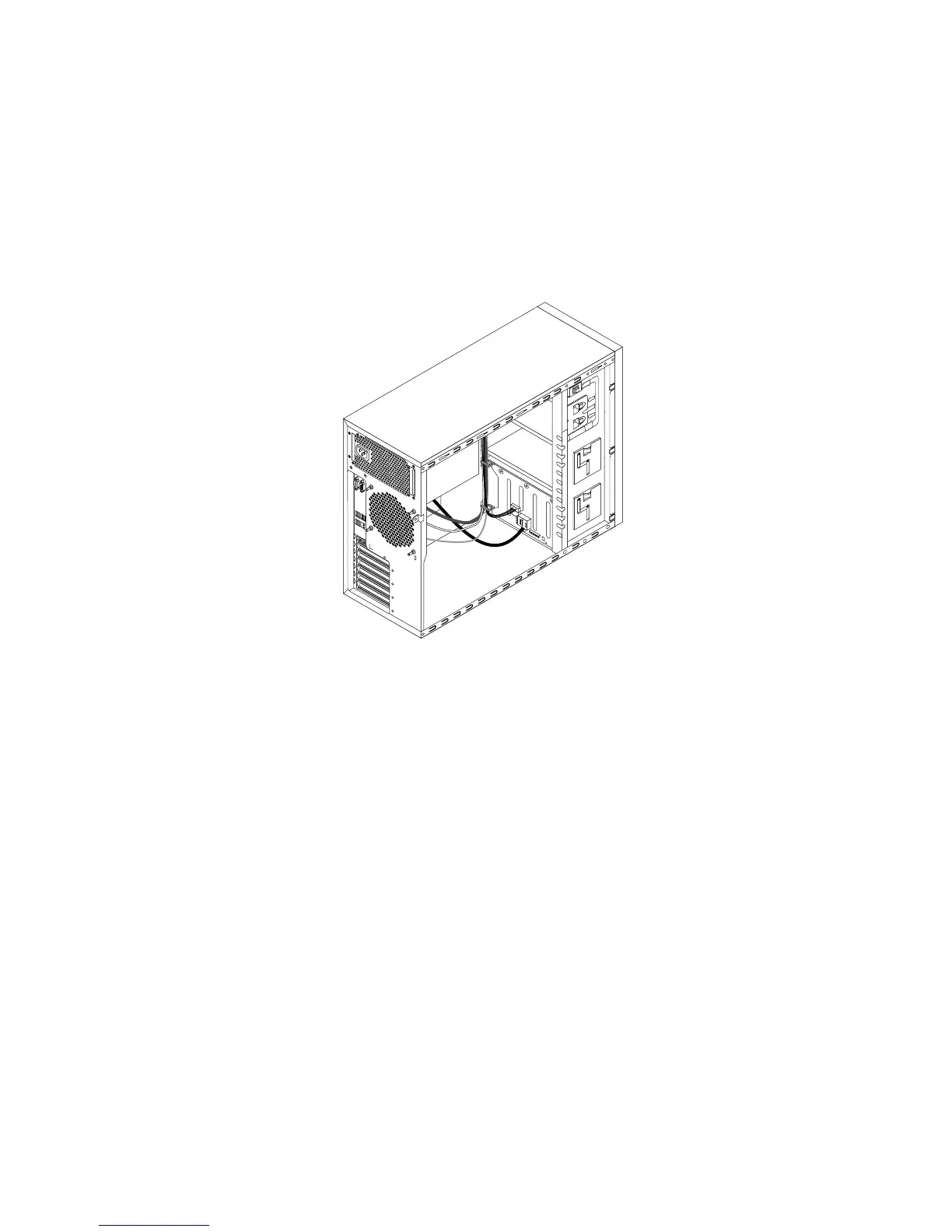

Figure97.Cablerouting
3.Ifyouhaveremovedthefrontbezel,reinstallit.See“Removingandreinstallingthefrontbezel”on
page67.
