1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage65.
3.Laytheserveronitssideforeasieroperation.
4.IfaPCIcardbracketassemblyisinstalledinyourserver,removethePCIcardbracketassembly.See
“RemovingandreinstallingthePCIcardbracketassembly”onpage69
.
5.LocateaPCIExpresscardslotonthesystemboardforinstallingtheEthernetcard.Youcaninstallthe
EthernetcardtothePCI-Eslot2thatsupportsacardwith167mm(6.57inches)inlength.See“System
boardcomponents”onpage37toidentifythedifferenttypesofPCIcardslotsinyourserver.
6.Removeanypartsordisconnectanycablesthatmightimpedeyouroperation.
7.RemovethePCIExpresscardslotbracketbyremovingthescrewthatsecuresthemetalbracketand
thenliftingthebracketoutofthechassis.StorethePCIExpresscardslotbracketincaseyoulater
removetheEthernetcardandneedthebrackettocovertheplace.
Note:Carefullyplacetheremovedscrewaside.YouwillneedthescrewlatertosecuretheEthernet
cardinplace.

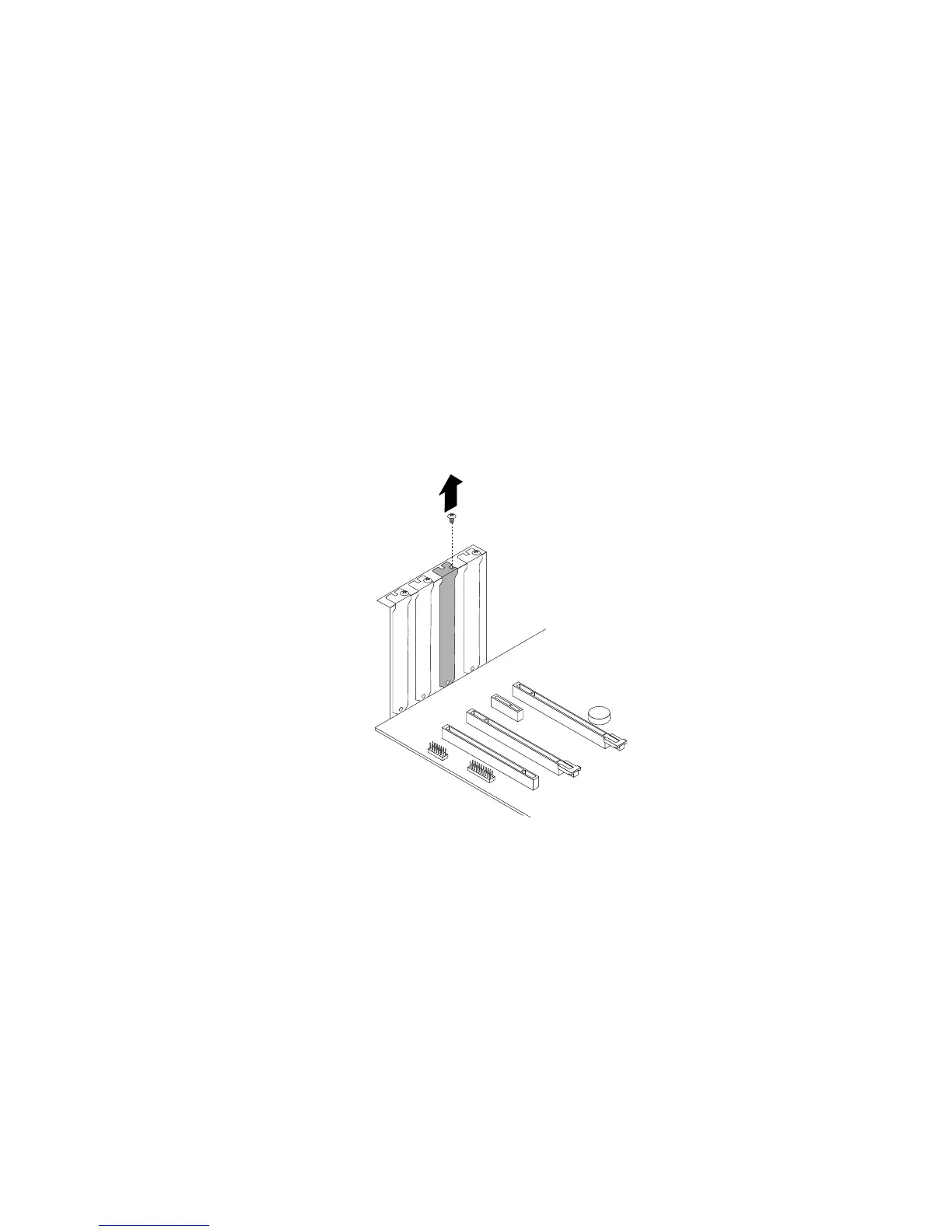

Figure38.RemovingaPCIExpresscardslotbracket
8.Touchthestatic-protectivepackagethatcontainstheEthernetcardtoanyunpaintedsurfaceonthe
outsideoftheserver.Then,taketheEthernetcardoutofthepackage.
Note:CarefullyhandletheEthernetcardbyitsedges.
Chapter6.Installing,removing,orreplacinghardware77
