6.Pullthehandleandcarefullyslidethenon-hot-swapdriveoutofthechassis.

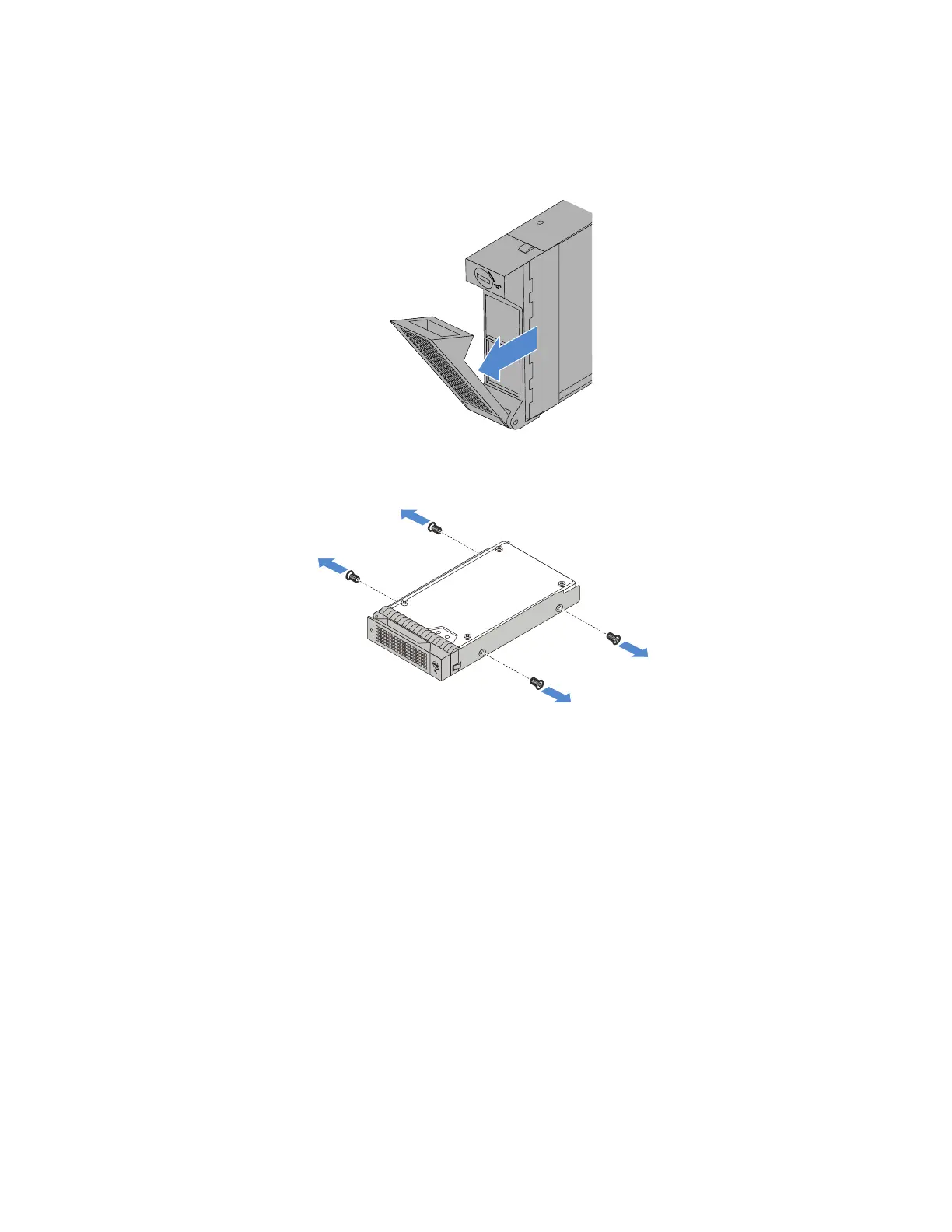

Figure34.Removingthenon-hot-swapdrive
7.Removethefourscrewsandthenremovethefailingdrivefromthedrivetray.
Figure35.Removingthedrivefromthedrivetray
8.Ifyouarenotgoingtoinstallanewdrive,installadummytrayintothevacantdrivebay.See“Installing
anon-hot-swapdrive”onpage70.
9.Ifyouareinstructedtoreturntheoldnon-hot-swapdrive,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Installinganon-hot-swapdrive
Toinstallanon-hot-swapdrive,dothefollowing:
1.Prepareyourserverandremovetheservercover.See“Preparingyourserverinadvanceandremoving
theservercover”onpage57.
2.Usethefrontdoorkeytounlockthefrontdoor(availableonsomemodels),andthenopenthefrontdoor.
3.Removethefrontsystemfan1.See“Removingthefrontsystemfan1”onpage90.
4.Locatetheappropriatenon-hot-swap-drivebay.See“Frontviewoftheserver”onpage14.
