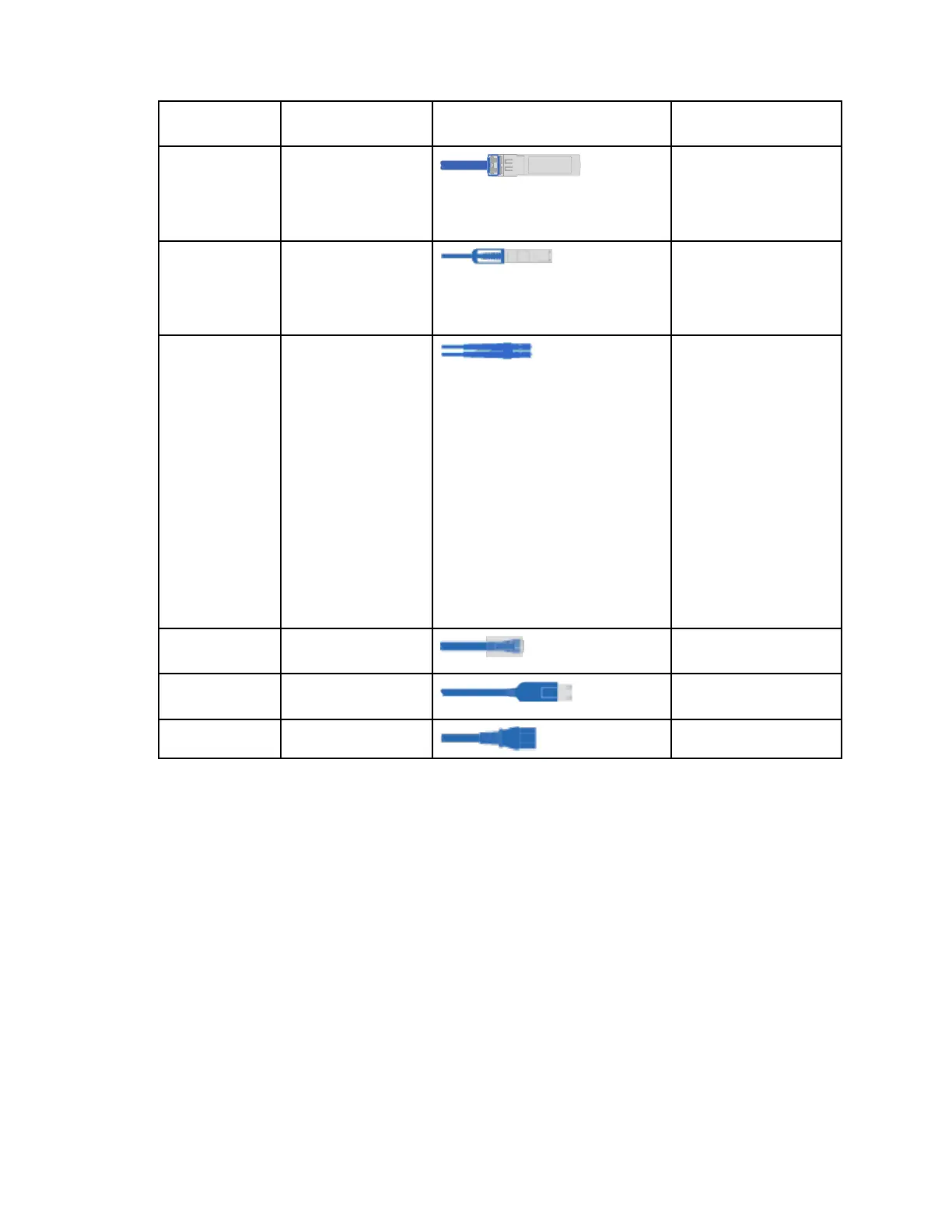

Type of cable Part number and
length
Connector type For...
25 GbE cable
(SFP28)
7Z57A03557, 1m
7Z57A03558, 3m
7Z57A03559, 5m
Cluster interconnect/HA
and Ethernet data
(order-dependent)
100 GbE cable
(QSFP28)
7Z57A03561, 1m
7Z57A03562, 3m
7Z57A03563, 5m
Storage (order-
dependent)
Optical cables
4Z57A10845, .5M
LC-LC OM4
4Z57A10846, 1M LC-
LC OM4
4Z57A10847, 3M LC-
LC OM4
4Z57A10848, 5M LC-
LC OM4
4Z57A10849, 10M
LC-LC OM4
4Z57A10850, 15M
LC-LC OM4
Fiber channel or
Ethernet data (order-
dependent)
RJ-45 (order
dependant)
Various
Management and
Ethernet network
Micro-USB
console cable
Not applicable
Console connection
during software setup
Power cables Various
Powering up the system
Step 5. Review the DG5000 Installation and Setup Instructions or Cluster Management Using Storage
Manager and collect the required information listed in that guide.
DG5000 Installation and Setup Instructions
Cluster Management Using ThinkSystem Storage Manager for DM Series
Installing the hardware
You need to install your system in a 4-post rack or Lenovo system cabinet, as applicable.
Step 1. Install the rail kits, as needed.
Step 2. Install and secure your system using the instructions included with the rail kit.
Note: You need to be aware of the safety concerns associated with the weight of the system.
12
ThinkSystem DG5000 Hardware Installation and Maintenance Guide
