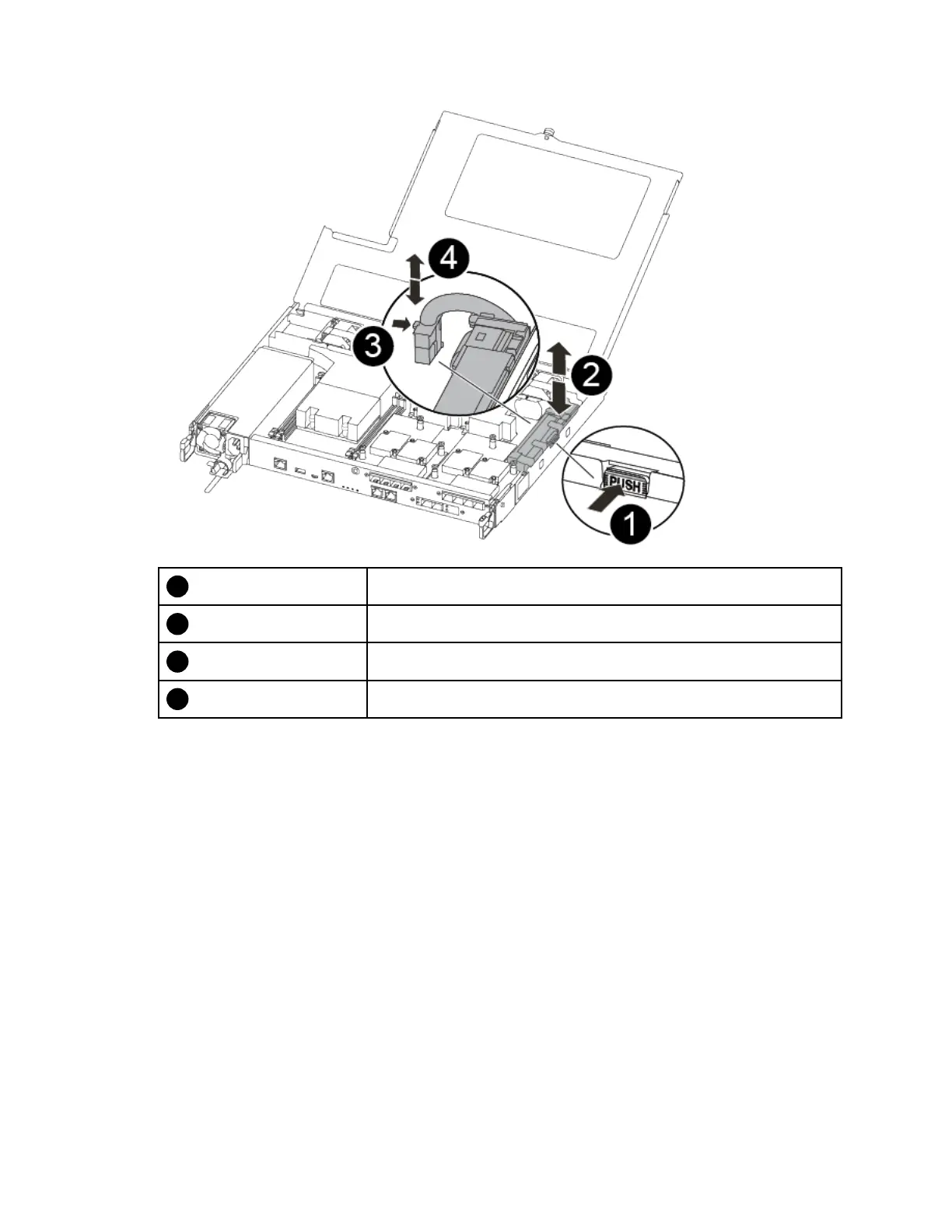

Squeeze the clip on the face of the battery plug.
Unplug the battery cable from the socket.
Grasp the battery and press the blue locking tab marked PUSH.
Lift the battery out of the holder and controller module.
a. Locate the battery plug and squeeze the clip on the face of the battery plug to release the plug
from the socket.
b. Grasp the battery and press the blue locking tab marked PUSH, and then lift the battery out of
the holder and controller module and set it aside.
c. Remove the replacement NV battery from the antistatic shipping bag and align it to the battery
holder.
d. Insert the replacement NV battery plug into the socket.
e. Slide the battery pack down along the sheet metal side wall until the support tabs on the side
wall hook into the slots on the battery pack, and the battery pack latch engages and clicks into
the opening on the side wall.
f. Press firmly down on the battery pack to make sure that it is locked into place.
Installing the controller module
After you have replaced the component in the controller module, you must re-install the controller module
into the chassis, and then boot it to Maintenance mode.
You can use the following steps to install the replacement controller module in the chassis.
A video for this task is available at:
74
ThinkSystem DG5000 Hardware Installation and Maintenance Guide
