Step 1. Rotate the cam handle such that it can be used to pull power supply out of the controller module
while pressing the locking tab.
CAUTION:
The power supply is short. Always use two hands to support it when removing it from the
controller module so that it does not suddenly swing free from the controller module and
injure you.

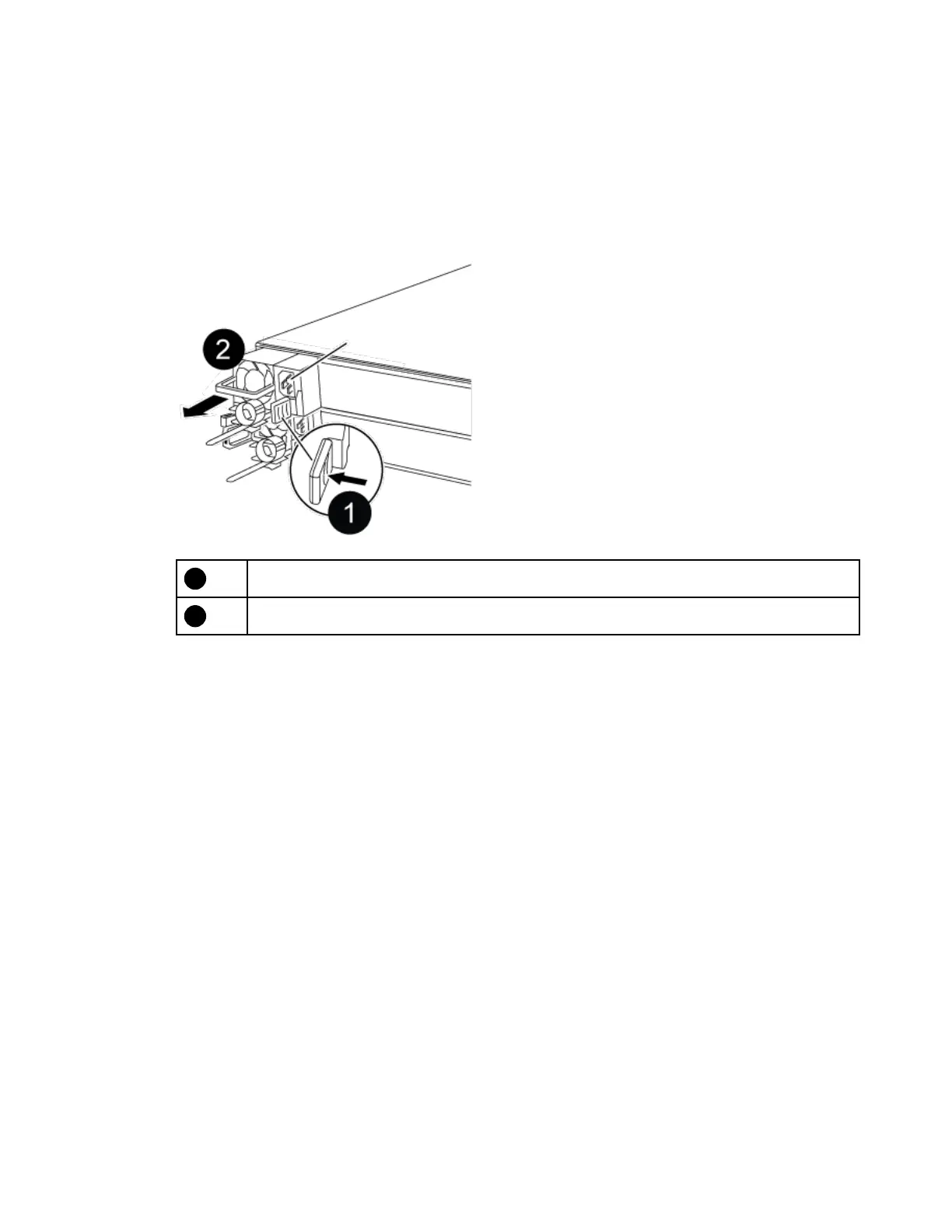

Blue power supply locking tab
Power supply
Step 2. Move the power supply to the new controller module, and then install it.
Step 3. Using both hands, support and align the edges of the power supply with the opening in the
controller module, and then gently push the power supply into the controller module until the
locking tab clicks into place. The power supplies will only properly engage with the internal
connector and lock in place one way.
Attention: To avoid damaging the internal connector, do not use excessive force when sliding the
power supply into the system.
Step 4. Repeat the preceding steps for any remaining power supplies.
Moving the fans
You must move the fans from the impaired controller module to the replacement module when replacing a
failed controller module.
A video for this task is available at:
• YouTube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-C8THdP1nmPF25RWwGRta3v
Chapter 4. Hardware replacement procedures 33
