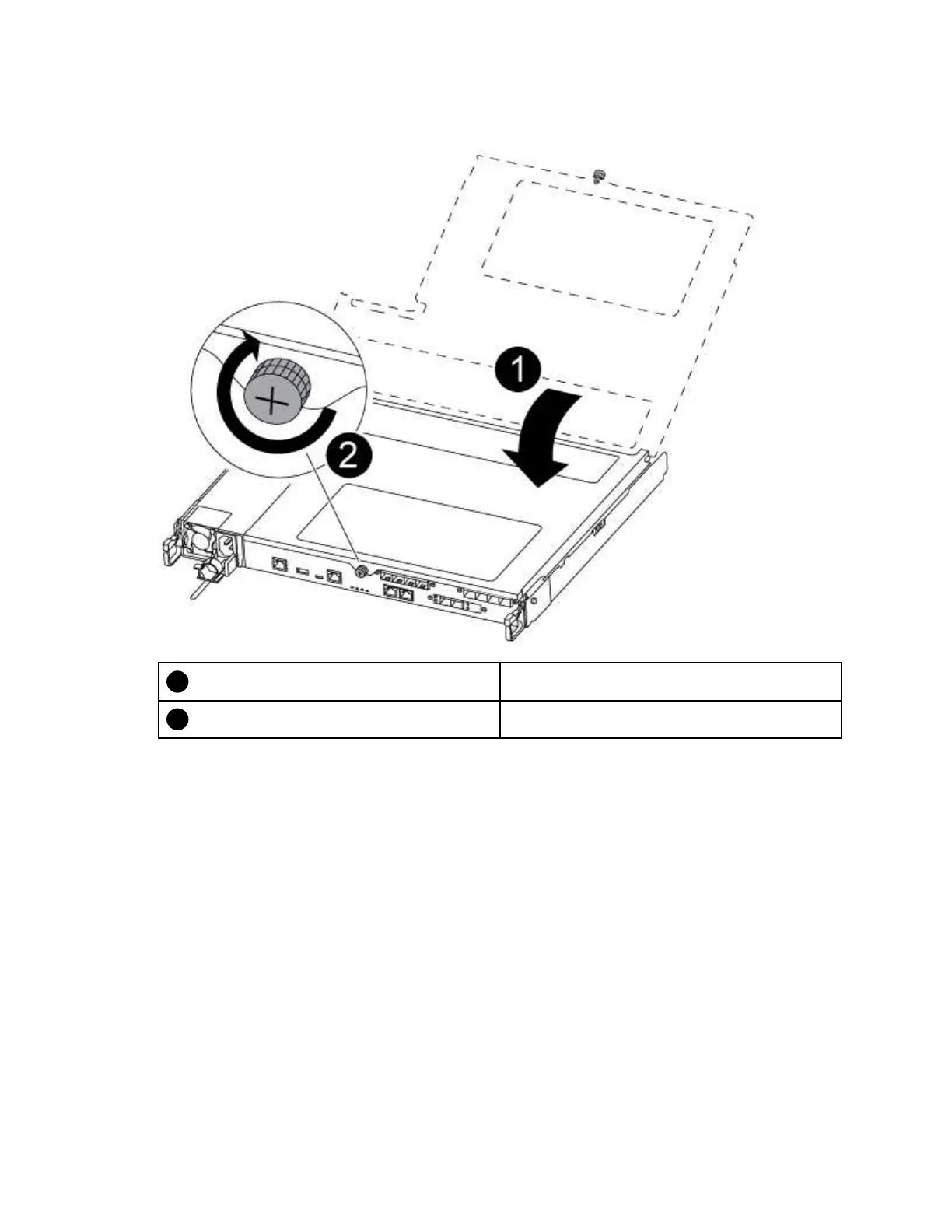

Step 2. Close the controller module cover and tighten the thumbscrew.
Controller module cover
Thumbscrew
Step 3. Insert the controller module into the chassis:
a. Ensure the latching mechanism arms are locked in the fully extended position.
b. Using both hands, align and gently slide the controller module into the latching mechanism
arms until it stops.
c. Cross your arms and place your index fingers through the finger holes from the inside of the
latching mechanism.
d. Press your thumbs down on the orange tabs on top of the latching mechanism and gently
push the controller module over the stop.
e. Release your thumbs from the top of the latching mechanisms and continue pushing until the
latching mechanisms snap into place.
The controller module begins to boot as soon as it is fully seated in the chassis. Be prepared to
interrupt the boot process.
The controller module should be fully inserted and flush with the edges of the chassis.
Step 4. Cable the management and console ports only, so that you can access the system to perform the
tasks in the following sections.
Note: You will connect the rest of the cables to the controller module later in this procedure.
46
ThinkSystem DG5000 Hardware Installation and Maintenance Guide
