Procedure
Step 1. Remove the top cover. See “Remove the top cover” on page 392.
Step 2. If the security bezel is installed, remove it. See “Remove the security bezel” on page 362.
Step 3. Disconnect the cables of the front I/O assembly from the system board. See “Front I/O assembly”
on page 58.
Step 4. Remove the front I/O assembly from the front chassis.

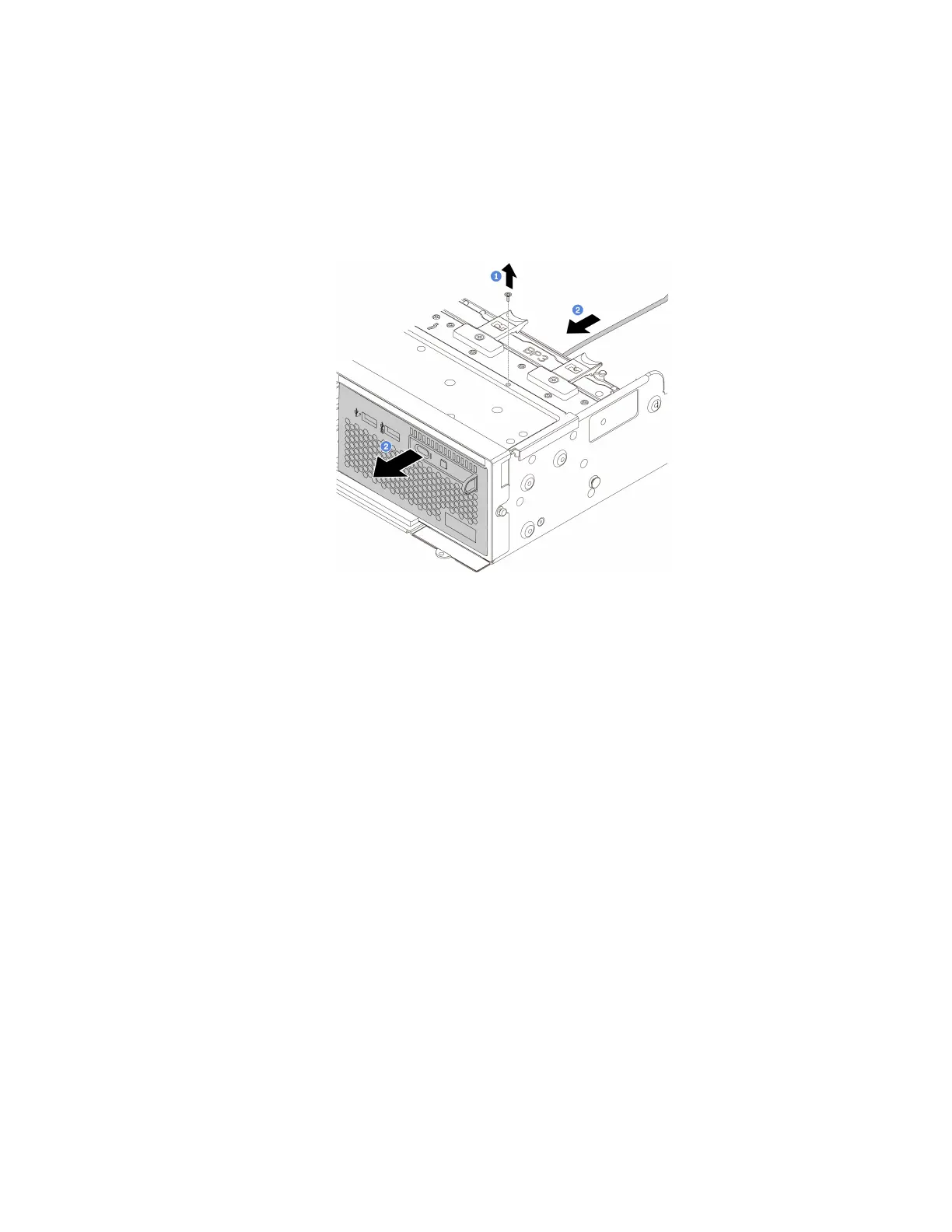

Figure 56. Front I/O assembly removal
1. Remove the screws that secure the front I/O assembly.
2. Slide the media bay out of the front chassis.
After you finish
If you are instructed to return the old front I/O assembly, follow all packaging instructions and use any
packaging materials that are provided.
