Switch block and jumper
The following illustrates locations and functions of the switch block and jumper on the system board.
Important:
• Before you move any jumpers, turn off the server; then, disconnect all power cords and external cables.
Do not open your server or attempt any repair before reading and understanding the following information:
–
http://thinksystem.lenovofiles.com/help/topic/safety_documentation/pdf_files.html
– “Handling static-sensitive devices” on page 131
• If there is a clear protective sticker on the top of the switch blocks, you must remove and discard it to
access the switches.
• Any system-board switch or jumper block that is not shown in the illustrations in this document is
reserved.

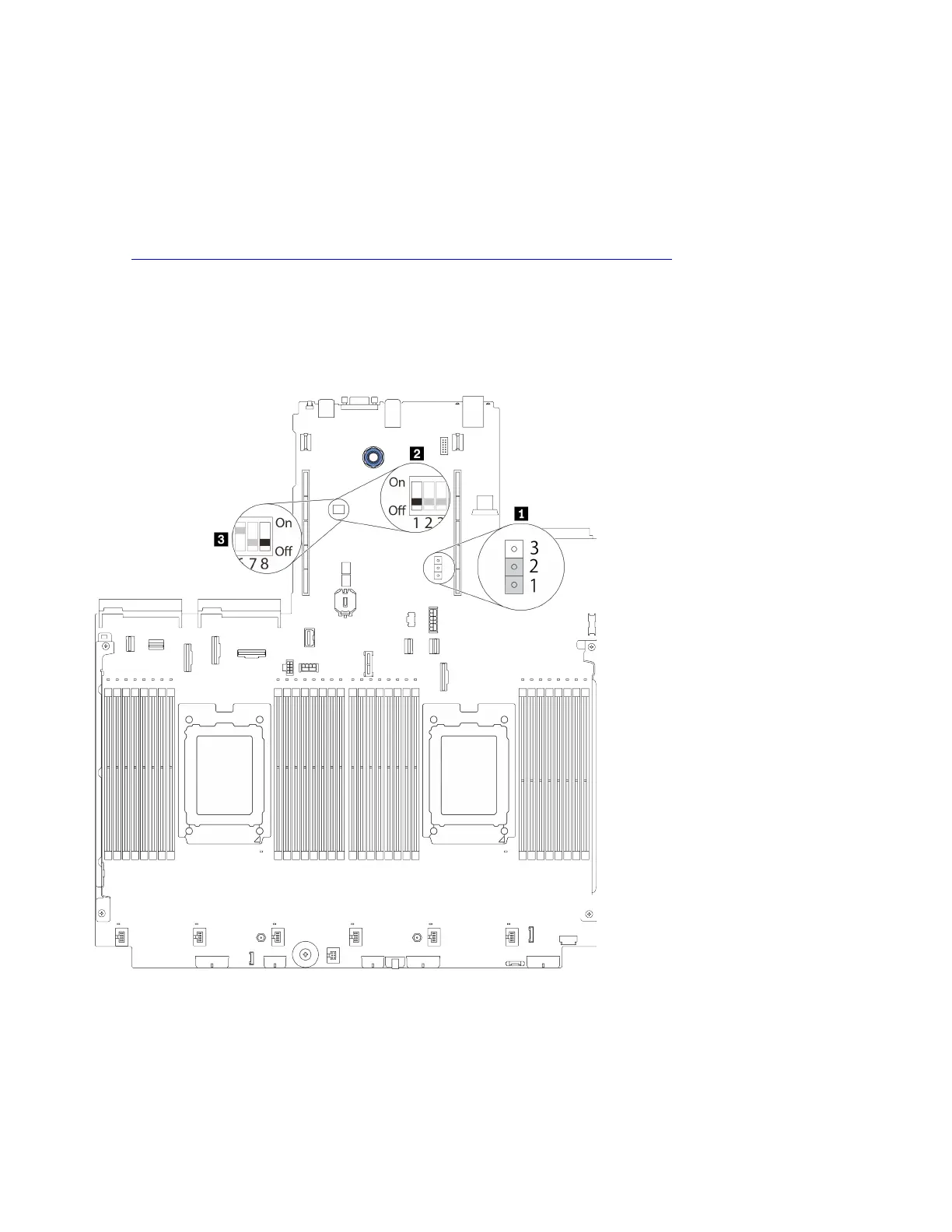

Figure 11. Switch block and jumper locations on system board
48 ThinkSystem SR665 Maintenance Manual
