System board components
The illustration in this section shows the component locations on the system board.

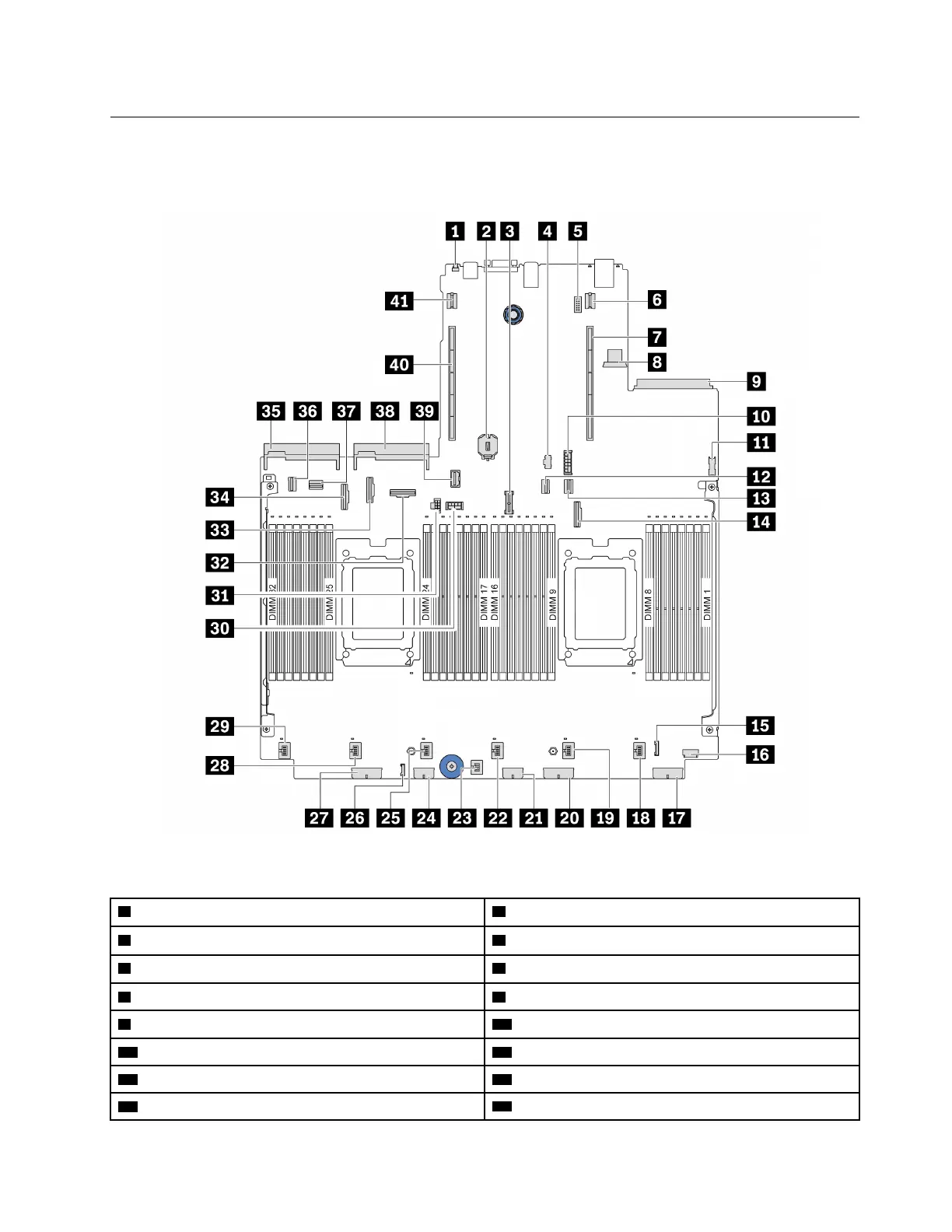

Figure 9. System board components
1 NMI button
2 CMOS battery (CR2032)
3 TPM module connector 4 M.2 power connector
5 Serial port module connector
6 Riser 1 power connector
7 Riser 1 slot
8 Internal USB connector
9 OCP 3.0 Ethernet adapter connector 10 7 mm SSD power connector
11 Front USB connector 12 PCIe connector 1
13 PCIe connector 2 14 PCIe connector 3
15 Front I/O connector 16 Front VGA connector
Chapter 2. Server components 43
