Server models with twenty-four 2.5-inch front drive bays

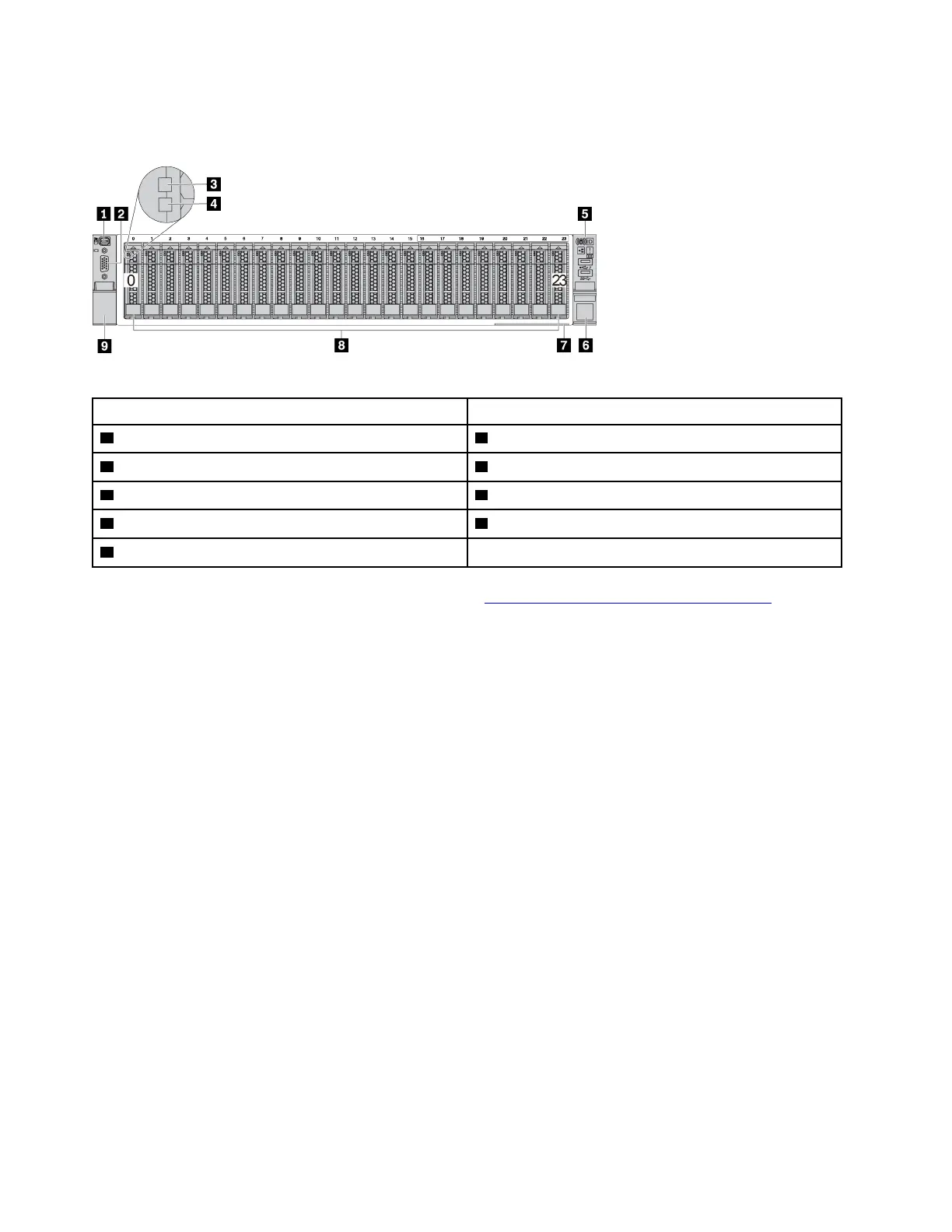

The following illustration shows the front view of server models with twenty-four 2.5-inch front drive bays.
Table 7. Components on the front of server models
Callout Callout
1 External diagnostics connector
2 VGA connector (optional)
3 Drive activity LED 4 Drive status LED
5 Front I/O assembly with diagnostics panel 6 Rack latch (right)
7 Pull-out information tab
8 Drive bays (24)
9 Rack latch (left)
Note: For more information about each component, see
“Front components overview” on page 21.
