Server models with eight 3.5-inch front drive bays

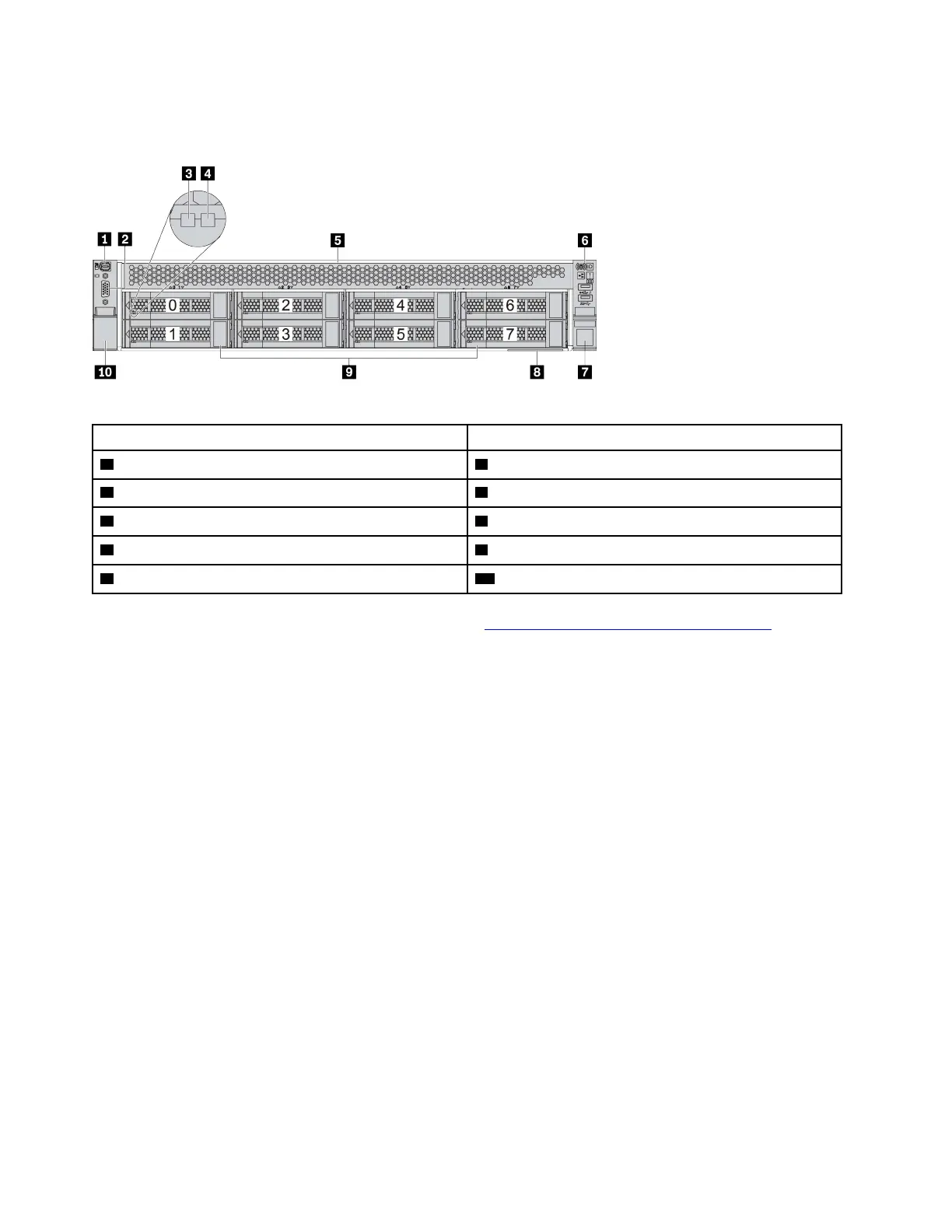

The following illustration shows the front view of server models with eight 3.5-inch front drive bays.
Table 9. Components on the front of server models
Callout Callout
1 External diagnostics connector
2 VGA connector (optional)
3 Drive activity LED 4 Drive status LED
5 Drive bay filler
6 Front I/O assembly with diagnostics panel
7 Rack latch (right)
8 Pull-out information tab
9 Drive bays (8) 10 Rack latch (left)
Note: For more information about each component, see “Front components overview” on page 21.
