Step 3. Install the super capacitor module.

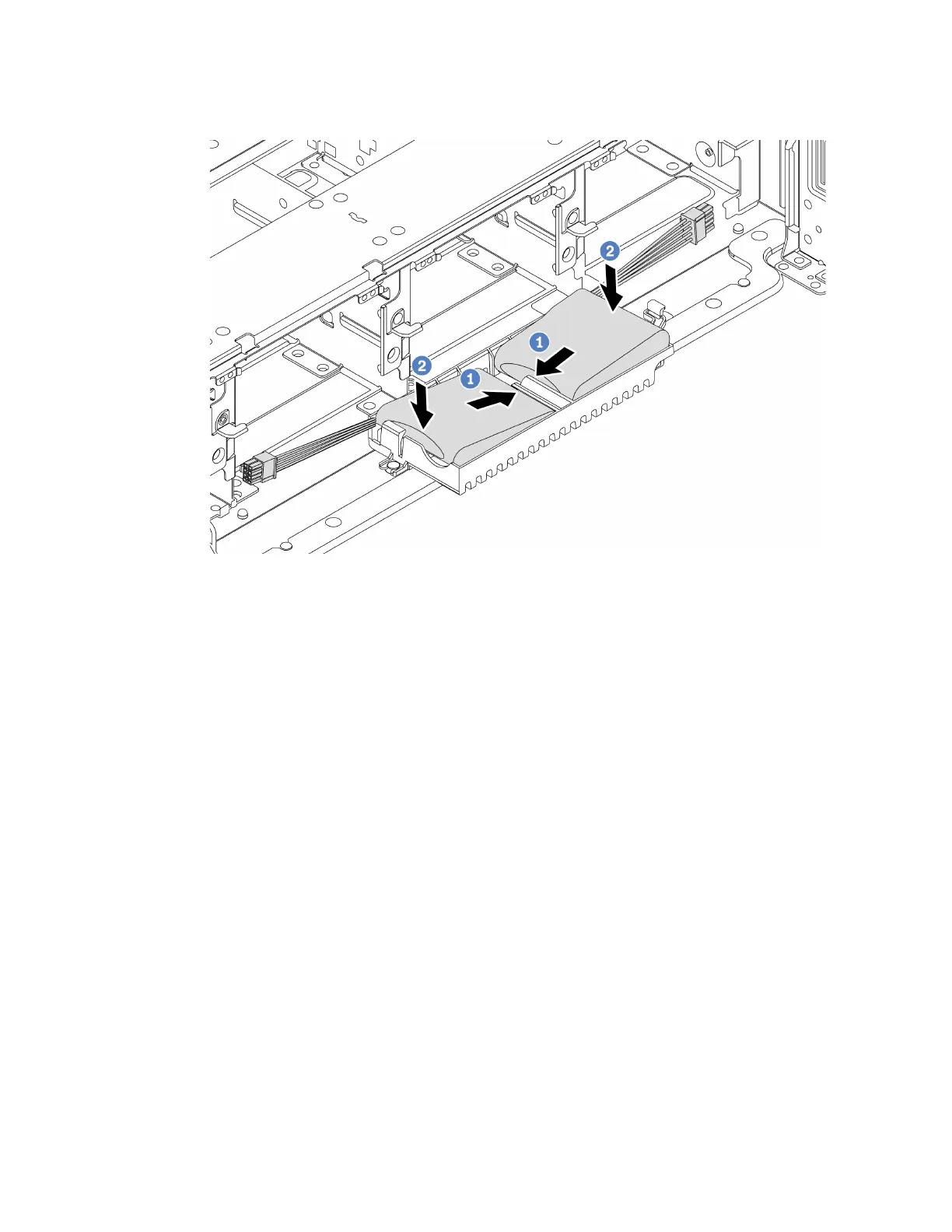

Figure 141. Super capacitor module installation
1. Insert the RAID super capacitor module into the retaining clip at one side as shown.
2. Press the RAID super capacitor module down on the other side until it snaps into place.
Step 4. Connect the super capacitor module to an adapter with the extension cable that comes with the
super capacitor module. See “RAID super capacitor modules” on page 62.
After you finish
Complete the parts replacement. See “Complete the parts replacement” on page 397
Chapter 4. Hardware replacement procedures 305
