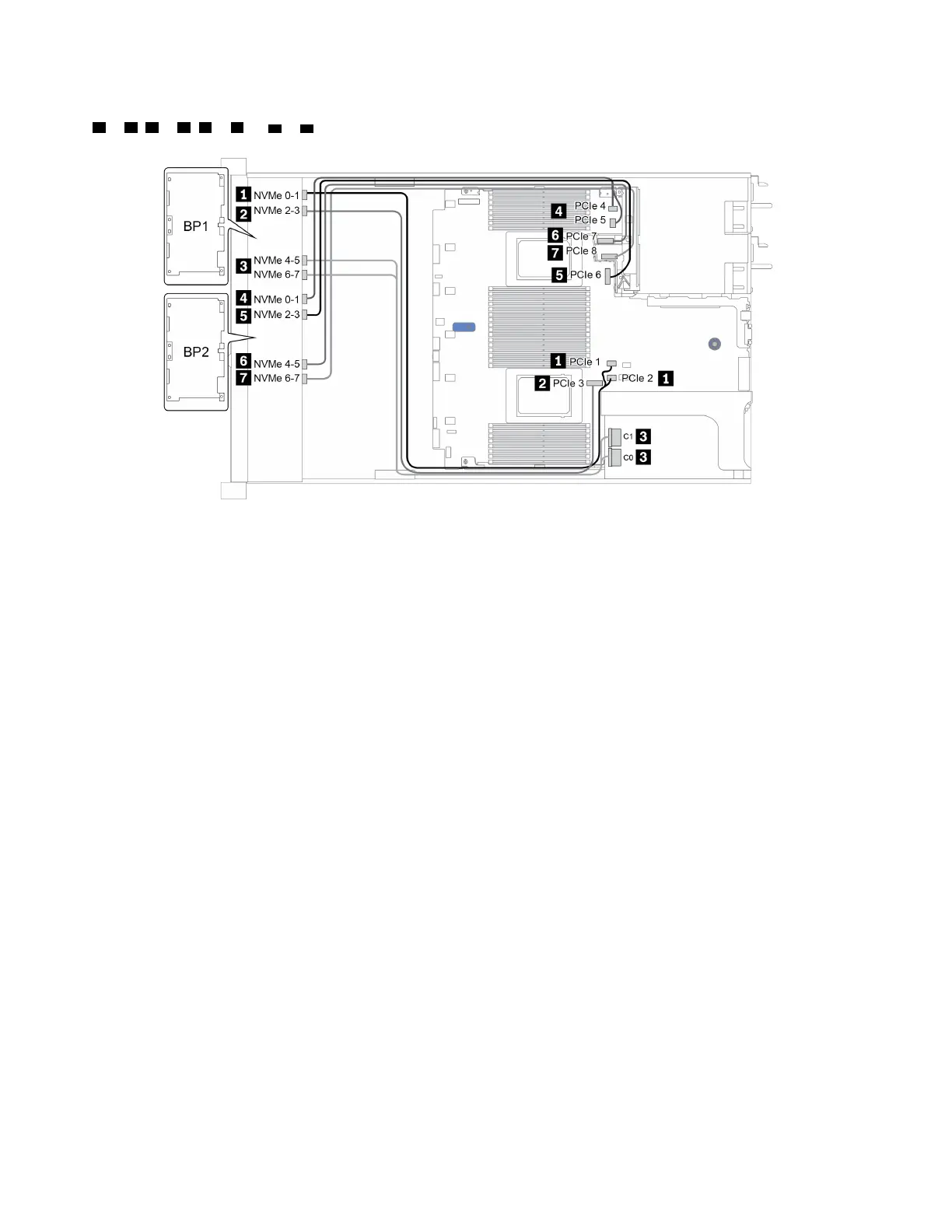

The following illustration shows the cable routing for the configuration 1. Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
Figure 29. Cable routing for configuration 1
80 ThinkSystem SR665 Maintenance Manual
