Commissioning
Acceleration, deceleration, braking, stopping
Speed range
6
6.10
6.10.1
6.10-1
EDSVF9333V EN 3.0-06/2005
6.10 Acceleration, deceleration, braking, stopping
6.10.1 Speed range
The speed range required for the application is set in the codes C0010 and
C0011:
ƒ The minimum speed (C0010) corresponds to a speed setpoint selection
of 0 %.
ƒ The minimum speed (C0011) corresponds to a speed setpoint selection
of 100 %.
n
0%
100 %
C0011
C0010
9300vec097

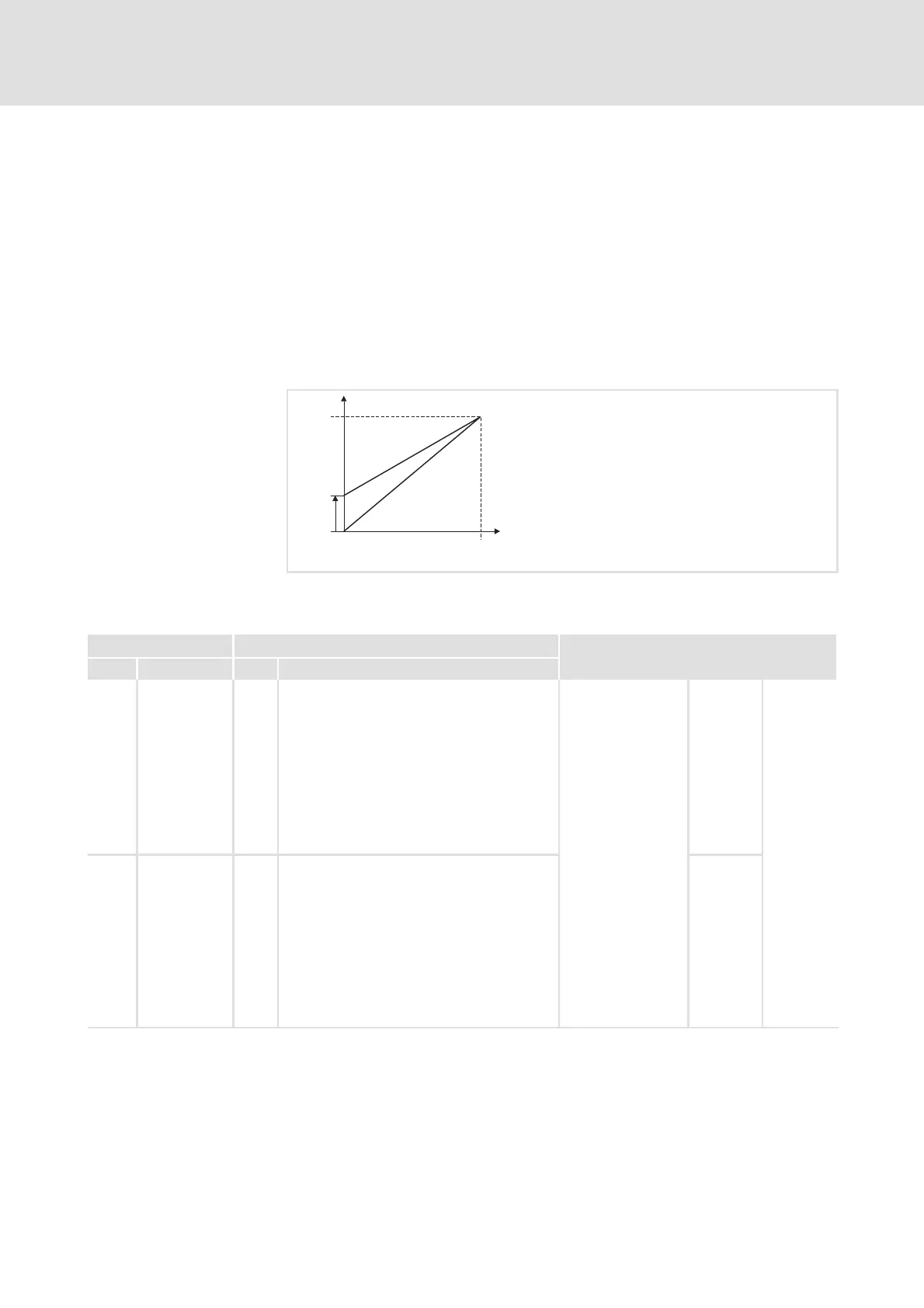

Fig. 6.10-1 Relation between setpoint and minimum and maximum output frequency
Codes for parameter setting
Code Possible settings IMPORTANT
No. Name Lenze Selection
C0010 N
min
0 0 {1 rpm} 36000
z Reference value
for the absolute
and relative
setpoint selection
for the
acceleration and
deceleration
times
z C0059 must be
set correctly
z Set C0010 <
C0011
z C0010 is only
effective in case
of analog setpoint
selection via AIN1
Important: For
parameter setting
via interface, major
changes in one step
should only be made
when the controller
is inhibited.
Minimum
speed
6.10-1
C0011 N
max
3000 0 {1 rpm} 36000 Maximum
speed
Features of ”minimum speed” (n
min
):
ƒ C0010 is approached via the acceleration ramp.
ƒ C0010 is only effective with analog setpoint selection via AIN1
(terminal X6/1 and X6/2).
Description
C0010
