Wiring the standard device
Connection terminal of the control card
5
5.8
5.8-1
EDSVF9333V EN 3.0-06/2005
5.8 Connection terminal of the control card
5
1
5
1
1
5
E2E4E5391
34
28E1E32
33 7K32 62K31
GNDA1A2A3A4ST1ST25934763
LO HI
X4
X3
X1
X11
X8
X9
X10
X5
X6
9300VEC001

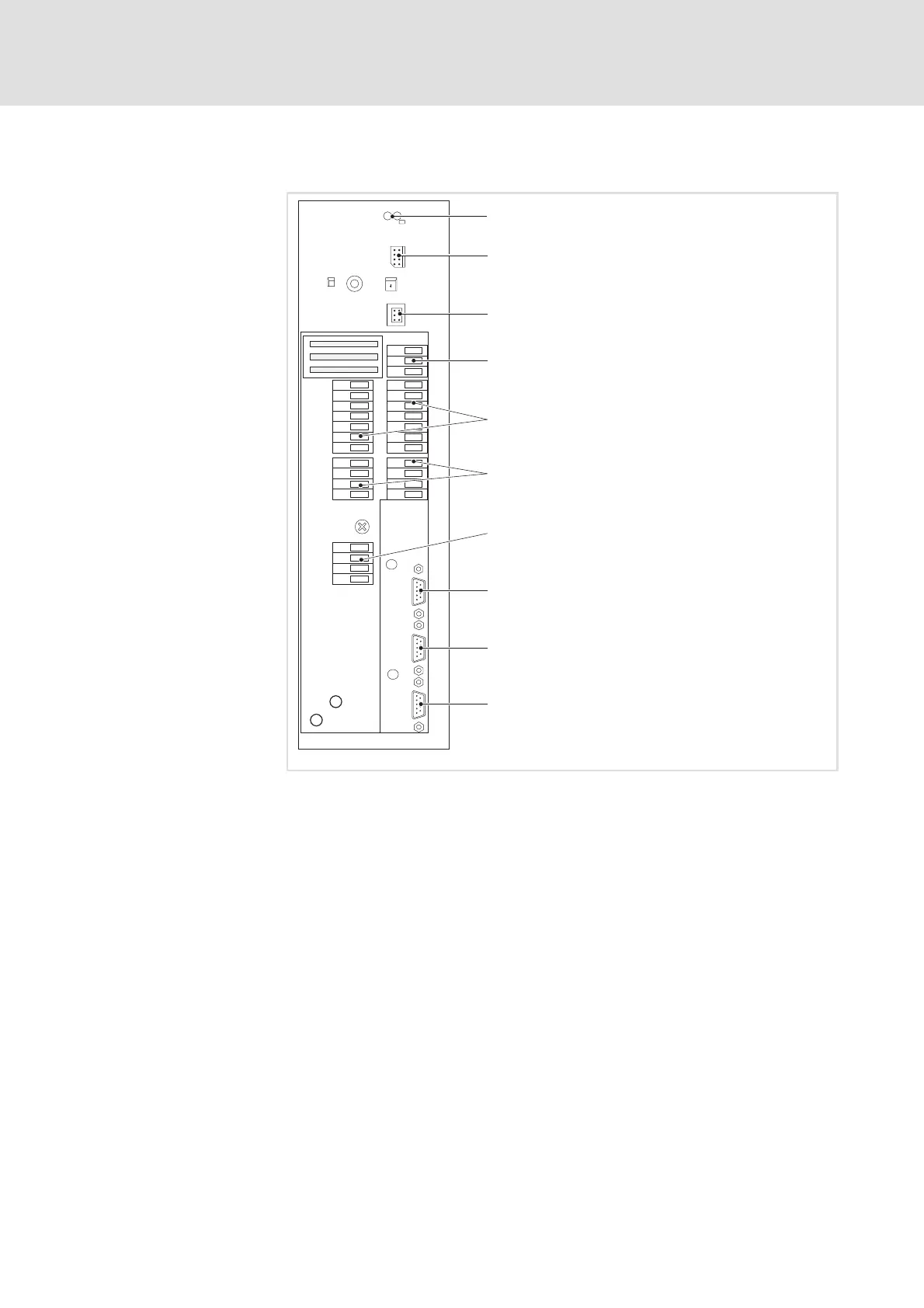

Fig. 5.8-1 Connection terminal of the control card
c 2 light-emitting diodes (red, green) for status display
x1 Automation interface (AIF)
Slot for communication modules (e. g. keypad XT)
X3 Preselection of signal type with jumper for input signal at X6/1, X6/2
X4 Terminal strip for system bus (CAN)
X5 Terminal strips for digital inputs and outputs
X6 Terminal strips for analog inputs and outputs
X8 Su b-D socket for in cremental encoders
X9 Sub-D socket for master frequency input
X10 Sub-Dsocketformasterfrequencyoutput
X11 Terminal strip for safety relay K
SR
