Lenze 9300 vector Series User Manual

Wiring the standard device
Basic devices in the power range 0.37 ... 11 kW
Motor connection
5
5.4
5.4.4

5.4-9
EDSVF9333V EN 3.0-06/2005
 Note!
ƒ Lenze recommends using Lenze system cables for wiring.
ƒ If self-prepared cables are used, only use cables with cores that
are twisted in pairs and shielded.
PE
U
VW
T1 T2 +UG -UG
PES
PES
PE
M
3~
PES
PES
KTY
X8/5
X8/8
PES
X8
X9
X10
9300vec121

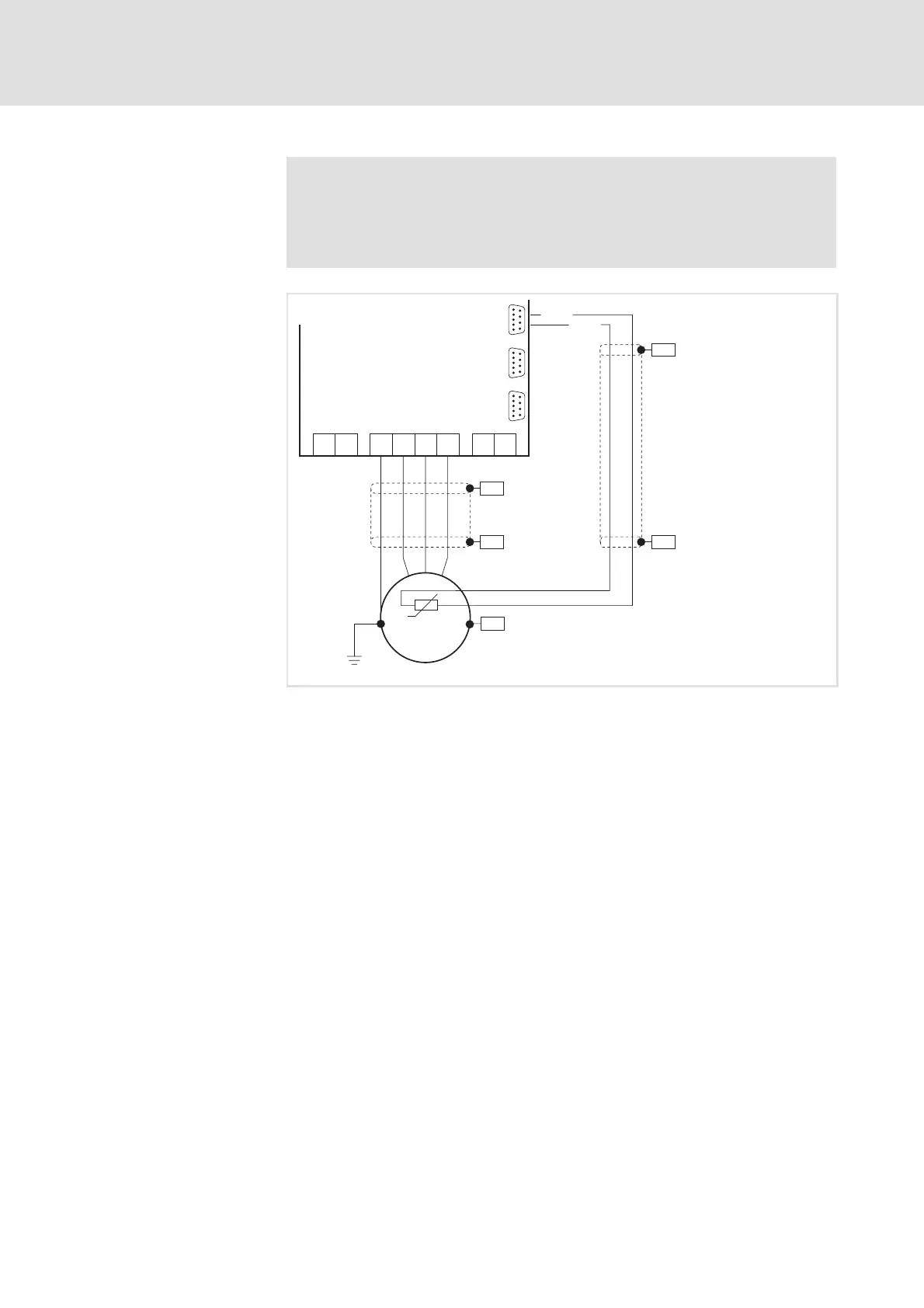

Fig. 5.4-7 Circuit diagram of motor connection with KTY thermal sensor at incremental
encoder input X8
Motor with KTY thermal
sensor
