Basic units in the power range 15 ... 30 kW
Mounting with fixing brackets and mains choke (standard)
5
Basic device installation
5.5
5.5.1
L
5.5-1
EDS82EV903-1.0-11/2002
5.5 Basic units in the power range 15 ... 30 kW
5.5.1 Mounting with fixing brackets and mains choke (standard)
8200vec291

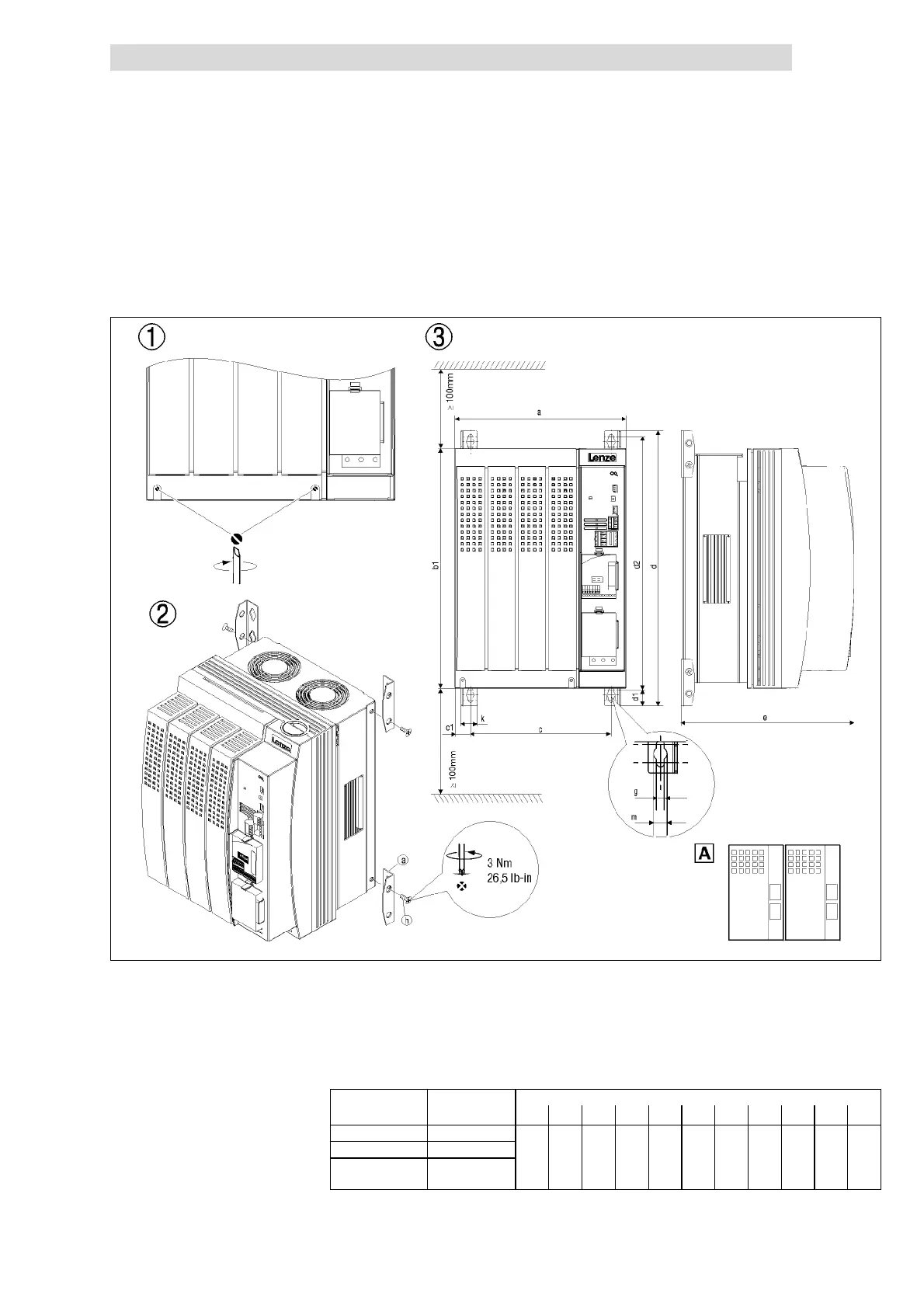

Fig. 5.5-1 Standard mounting with mains choke 15 ... 30 kW

Loose both screws in order to remove the housing cover. The assembly kit can be found under
the housing cover.
 Mounting of the fixing brackets
 Dimensions
0
Drive controllers can be mounted side by side without a certain space to each
other.
Dimensions [mm]
8200 vector Mains choke a b1 c c1 d d1 d2 e g k m
E82EV153K4B2x1 ELN3-0088H035
E82EV223K4B2x1 ELN3-0075H045
2
5
0
3
5
0
2
0
5
2
2
4
0
2
2
4
3
7
0
2
5
0
6
5
2
4
1
1
E82EV303K4B2x1
ELN3-0055H055
250 350 205 22 402 24 370 250 6.5 24 11
